󰊝󰊯Application󰊯Can-making/Beer and beverages󰊯Double Seam

CanNeed-RPG-100 Profile Gauge for Roll and Chuck

Applications

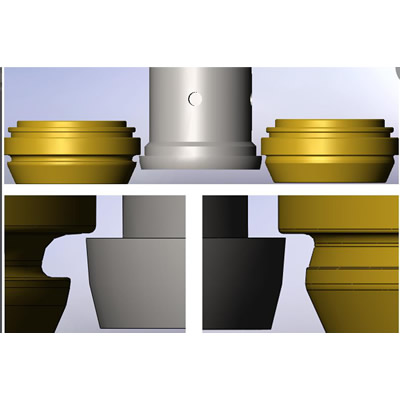

CanNeed-RPG-100 is able to scan profiles of seaming Rolls and Chucks (or other tooling - including
carbide and ceramic tools) easily and quickly. The system can be used for acceptance  testing for new
seaming rolls or chucks, for quality assurance purposes and for stress analysis. Monitor tooling wear to
replace rolls and chucks only when they need to be replaced.

Advantages

  •  Reversing engineer tooling design
  •  Comparing designs from different manufacturers
  •  Locating duplicate roll & chuck designs - reducing inventory
  •  Cataloging rolls & chucks
  •  Acceptance testing for rolls and chucks - preventing mistakes in production!
  •  Monitoring tool wear to replace rolls and chucks only when they need to be replaced
  •  Isolating bad profile designs
  •  Comparing design with manufacturing

Technical Parameter

Resolution: 0.007mm, or better
Roll & chuck Diameter: 46 to 126mm (bigger by ordering)
Distance from roll bottom to groove: Up to 35mm
Angles: Up to 89.4 degrees
Range: 6 mm

Usage



The CanNeed-RPG-100 is able to scan profiles of seaming Rolls and Chucks (or other tooling - including carbide and ceramic tools) easily and quickly. The system can be used for acceptance testing for new seaming rolls or chucks, for quality assurance purposes and for stress analysis. Monitor tooling wear to replace rolls and chucks only when they need to be replaced
Placing faulty Rolls or Chucks in the production line without inspection can produce faulty seams - which can stop production (or worse).

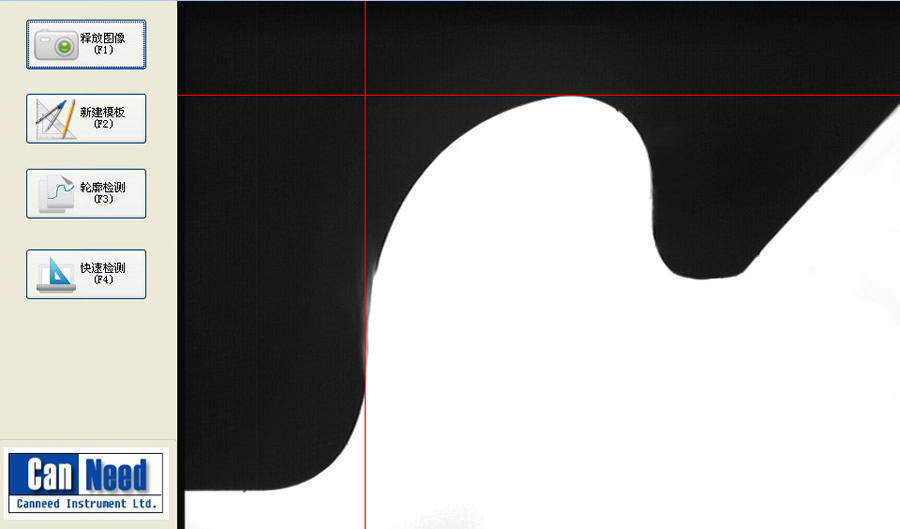

CanNeed-RPG-100 is the first dedicated computerized non-contact seaming Roll and Chuck inspection system. By scanning the profile, it is capable of detecting defects, analyzing angles, radii, measuring distances and automatically measuring the differences between a roll's specification and the current scan.


Advantages


Reversing engineer tooling design
Comparing designs from different manufacturers
Locating duplicate roll & chuck designs - reducing inventory
Cataloging rolls & chucks
Acceptance testing for rolls and chucks - preventing mistakes in production!
Monitoring tool wear to replace rolls and chucks only when they need to be replaced
Isolating bad profile designs
Comparing design with manufacturing

Technical Data



Resolution: 0.007mm, or better
Roll & chuck Diameter: 45 to 170mm (bigger by ordering)
Distance from roll bottom to groove: Up to 50mm
Angles: Up to 89.4 degrees
Range: 6 mm
