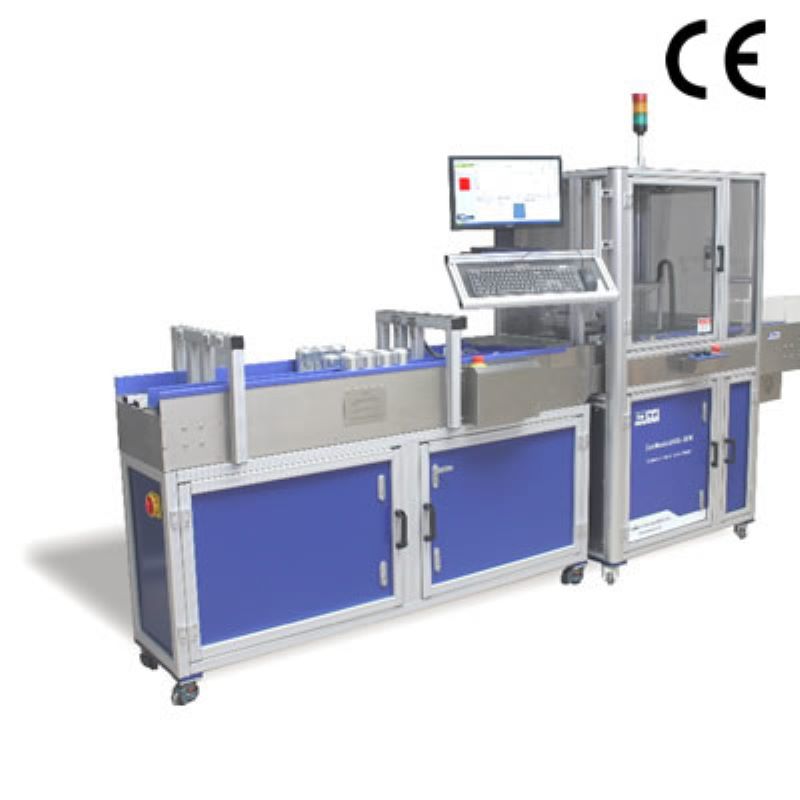

CanNeed-ACBT-1000 Automatic Buckle Tester is a full automatic buckle tester bottom for cans with unattended operation.It determines the exact pressure at which the can bottom begins to buckle respectively the dome reverses with dome growth function. CanNeed-ACBT-1000 is a standard instrument for can-making industry which can respectively and efficiently finish auto online measurement.
CanNeed-ACBT-1000 is equipped with auto sampling device which conveys the can to the testing area automatically. Swinging mechanical hand pushes the can to the testing station and it will measure automatically. There is no need to change the clamps, applicable for empty necked-in cans and straight wall cans at the same time. There is no need to change the clamps, applicable to test the cans with different diameters and different heights at the same time. Testing results can be saved in database and automatically transferred to SPC system.
Advantages
● Auto measurement: the buckling pressure of the can bottom, with dome growth function.
● Auto measurement in all process saving time and cost of HR, avoiding personal errors.
● Multi-channel sampling device, can measure various cans at one time.
● Adopt visual system to identify mode number of can bottom.
● With two stations, no need to change the clamps to test two types of cans with different diameters at the same time.
● No need to change the clamps, applicable for empty necked-in cans and straight wall cans at the same time.
● Three measuring modes: Buckle Mode, Dome Growth Mode, Length Mode.
● Quick calibration function.
● Adopt world-class advanced and precise sensor with outstanding accuracy and repeatability
● The users can select different measuring units (Psi, bar, Kpa) through software.
● Real-time display the measuring values and the curve.
● Effective, quick and accurate measurement, improving inspection efficiency.
● Secure, durable, easy operation and maintenance.
● Assemble with world-class components.
● Assemble with HD camera for convenient after sale service via remote connection.
● Testing results can be sent to SPC.
● Equipped with powerful database management software, convenient for data query and statistics.
● Display the max. and min. measuring value and average after several tests.
● Data can be saved to Excel form.
● Various statistics reports.
● User defined report format, suitable for the enterprises’ styles and formats.
Technical Parameter
1) Measuring range: 0-900Kpa
2) Resolution: 1Kpa
3) Measuring can types: 2-pc cans (aluminum) with can body diameters of 202/204/211, can mouth inner diameters: 200/202/206, can heights: 89mm-169mm
4) Power: 220V 50Hz
5) Air pressure: Over 4 bars
6) Appearance: Aluminum structure
7) Dimension: 3158 X 1000 X 1900 mm (L x W x H)
