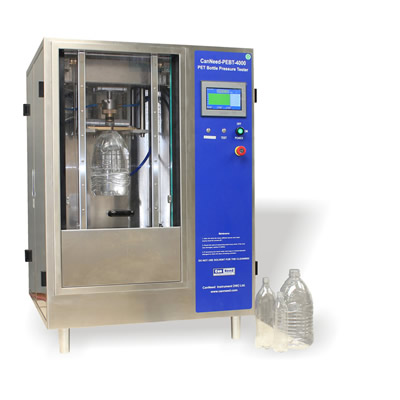

CanNeed-PEBT-4000S PET Bottle Pressure Tester(Plus version) is an advance testing equipment specialized for testing the PET bottles. It has been designed in conformity to the three international commonly used testing methods. CanNeed-PEBT-4000 is able to test the pressure capabilities that under a set pressure or the burst test in order to check whether the PET bottle is qualified to meet the requirement of packaging industry.
By the means of replenishing pressurization, the pressurizing process was linearized, and to increase until reaching the set point or burst point.
CND-PEBT Software can display the curve of pressure and volume expansion, and provide the relevant temperature data
Auto clamping sample, Auto water filling, Auto testing
1) Three (3) international commonly used testing methods: Fill Ramp mode, Burst mode, User-defined mode 2) Touch-screen controlled, display the real-time testing data 3) During the testing, CND-PEBT software can display the curve of pressure and volume expansion, and provide the relevant temperature data. 4) No need for high-pressure air supply
Advantages
Three (3) international commonly used testing methods
CND-PEBT Professional software
Preset testing mode and user-defined mode
Display the curve of pressure and volume expansion during the test
Monitor and record the water temperature during the test
Applicable for different sizes of plastic bottles
Touch-screen controlled
RS232C data output
With calibration function, convenience for calibrating
With water filter system
With a pressure calibration meter and a volume calibration flask
Technical Parameter
Operating Pressure Range : 0-300 Psi (0-20.7 bars)
Accuracy : ±3 Psi (±0.2 bar)
Pressure Measuring units : Psi, kg/cm2, bars, MPa (user defined)
Volume Expansion Measuring units : Milliliters (ml)
Pressure Source : Recommended to use Nitrogen gas (not supplied)
Water Source : 0.1 - 0.3 MPa tap water
Operating Temperature : 0-50℃
Power Supply : 110-120 or 220/240VAC @ 50/60 Hz
Expansion Capability : 2 L
Bottle Sizes Supported : Up to 3L (depending on expansion percentage)
Output Interface : Standard serial link
Dimensions : 830×580×1600 mm (W × D × H)
Weight : 120KG
