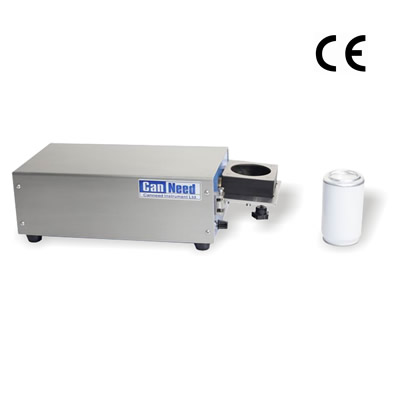

SeamSight®-VSM-6B
Automatic Seam Monitor

Testing occasions:laboratory
Detection object:Canned beer, drinks,Metal cap/crown cap/tab cap/screw cap/claw opening cap,Two-piece can/aluminum bottle
Test items:Double Seam

Applications

SeamSight-VSM-6B Automatic Seam Monitor is a compact measuring system for quick and accurate automatically seam measurements,  it  has  adopted  the  advanced  optical  system  and Golden LensTM video capture device, which ensured the high image definition and the measurement accuracy.
SeamSight-VSM-6B  Automatic Seam Monitor  is  equipped with  the  professional  seam measuring software CanNeed-CND_VSM3.0. With  the CanNeed SPC data  collection  system,  the data of actual seam thickness, actual countersink, etc., can be transferred to the computer automatically.

Advantages

  • Equip with Golden LensTM video capture device which ensured the high image definition;
  • SPC compatible, use a data adapter to collect the data from Mitutoyo Digital Indicator (Actual Seam Thickness; Actual countersink)
  • Resolution: 0.001mm Accuracy: 0.005mm Magnification factor: 60 X Line positioning magnification factor: 180 X
  • Magnifier option enable users to magnify the testing image for a more accurate line positioning;
  • The Anti-noise Seam Saw can be chosen, help protect your hearing;
  • Report format can be customized, flexible for different report styles of different companies.
  • 12 Measuring Items: Seam Length, Body Hook Length, End Hook Length, Overlap, Seam Gap,Overlap Rate, Body Hook Lapping Rate, End Hook Lapping Rate, On-screen Seam Thickness, Actual
  • Seam Thickness, Actual countersink and Tightness;
  • Software adopted data base management system, measurement results and images are saved in the data base, users can facilitate inquires;
  • Users can review or re-measure the saved projects at any time;
  • Graph chart statistic function, automatically analyze and compare the measurement results;
  • Data can be exported as an Excel file;
  • Predefine various qualification standards, can judge and warn automatically whether the results are qualified in every measure;
  • Measurement results and label lines can be marked directly on the image, results will be also displayed in corresponding field on the screen;
  • Seam image can be printed, stored, no need to retain the sample cans;
  • Provided with calibration piece, calibrate at any time;
  • Use the monochromatic source, make it much more durable.

Technical Parameter

  • Power supply : 220V/110V
  • Serial interface : RS 232 C
  • Resolution : 0.001mm
  • Accuracy : 0.005 mm
  • Magnification factor : 60 X
  • Line positioning magnification factor : 180 X
  • Languages : Chinese/English
  • Cans dia. : 52-155 mm, customizing up to 300
