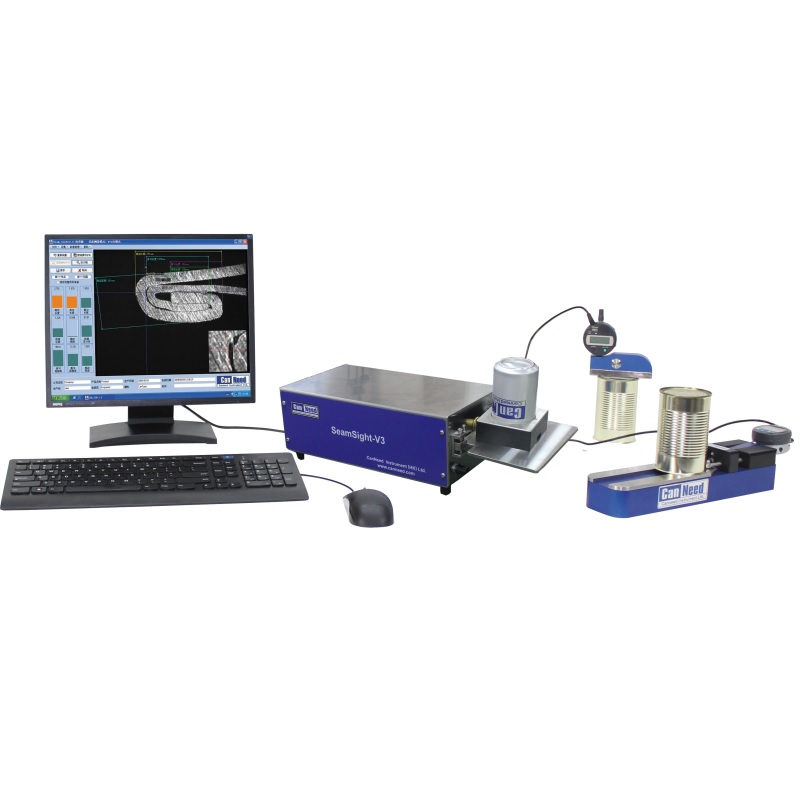

SeamSight®-V3
Full Automatic Seam Monitor

Testing occasions：laboratory

Detection object：Two-piece can/aluminum bottle，Three-piece can/spray can/coating，Canned beer/canned beverages/canned food

Test items：Double Seam

Consultation

Applications

The CanNeed Seam Sight® professional seam measuring software will do the line positioning automatically and the measurement to be finished within 1 second! The software also adopted the data base management system, all the measurement data will be restored in the system data base, so that to enhance the software performance and more convenience in data management. The result statistic and result chart has been added in the data base screen for overview and comparison. Meanwhile, the measurement screen has been optimized for a vivid result display.

The CanNeed Seam Sight® Full Automatic Seam Monitor has adopted the advanced optical system and Golden Lens® video capture device, which interference-free of external light source and ensured the high image definition and the measurement accuracy. The Seam Sight® system is equipped with the new seam measuring software Seam Sight® .

Advantages

1) Full automatic line positioning (Auto measure), measurement finished within 1 second!
2) Equip with Golden Lens® video capture device which interference-free of external light source and ensured the high image definition
3) SPC compatible, use a data adapter to collect the data from Mitutoyo Digital Indicator (Actual Seam Thickness; Actual countersink)
4) The tightness can be measured
5) Resolution: 0.001mm Accuracy: 0.005mm Magnification factor: 60 X Line positioning magnification factor: 180 X
6) Magnifier option enable users to magnify the testing image for a more accurate line positioning
7) The Anti-noise Seam Saw can be chosen, help protect your hearing
8) Report format can be customized, flexible for different report styles of different companies
9) 12 Measuring Items: Seam Length, Body Hook Length, End Hook Length, Overlap, Seam Gap, Overlap Rate, Body Hook Lapping Rate, End Hook Lapping Rate, On-screen Seam Thickness, Actual Seam Thickness, Actual countersink and Tightness
10) Software adopted data base management system, measurement results and images are saved in the data base, users can facilitate inquires
11) Graph chart statistic function, automatically analyze and compare the measurement results
12) Users can review or re-measure the saved projects at any time
13) Data can be exported as an Excel file
14) Predefine various qualification standards, can judge and warn automatically whether the results are qualified in every measure
15) Measurement results and label lines can be marked directly on the image, results will be also displayed in corresponding field on the screen
16) Seam image can be printed, stored, no need to retain the sample cans
17) Provided with calibration piece, calibrate at any time
18) Use the monochromatic source, make it much more durable
