Home / Products List / PEPT-500 Perpendicularity Tester for PET Bottle (Digital)

PEPT-500
Perpendicularity Tester for PET Bottle (Digital)

Testing occasions:laboratory
Detection object:PET bottled drinks
Test items:Squareness/Vertical axis deviation

Applications

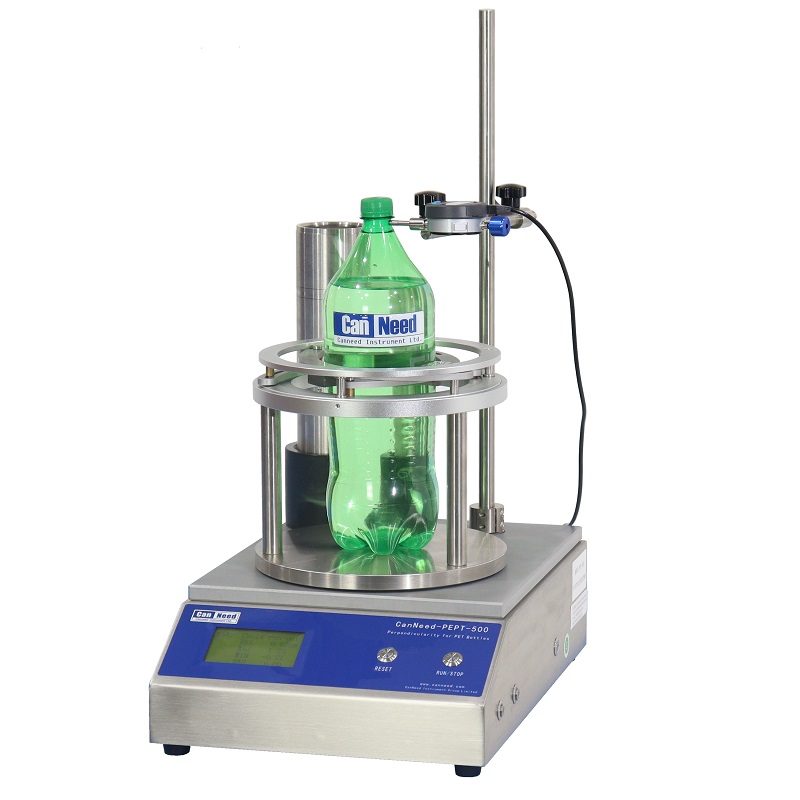

The PEPT-500 Perpendicularity Tester for PET Bottle (Digital) is used to measure the perpendicularity of PET Bottle. The Tester is the industrial standard in PET bottle manufacturing and beverage industry. It is suitable for measuring round PET bottles.

The PEPT-500 is an upgraded version of the PEPT-100, which adopts the automatic rotation chuck for one circle measurement, without manual rotation, adding the measurement circle beat mode, and the screen displays the real-time value, maximum and minimum value of the sample for one circle measurement. The clamping bottle adopts the Three-Twist design, clamping in the middle of the bottle, overcoming the measurement error caused by the sample deformation and the bottom clamping of other measuring instruments. Equipped with calibration column to ensure accurate measurement.

Technical Parameter

Sample range

φ25PET bottles body diameter≤φ110mmthe maximum PET bottle height is 370mm

Resolution/

Accuracy

Resolution0.01mm

Measure range

0-10mm

Weight:

30KG
