Home / Products List / CanNeed-ABT-100 Burst Buckling Tester for Aerosol Cans

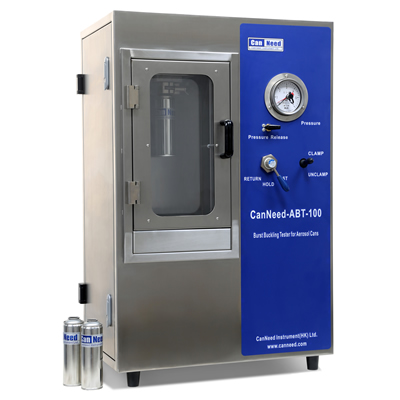

CanNeed-ABT-100
Burst Buckling Tester for Aerosol Cans

Testing occasions:laboratory
Detection object:Three-piece can/spray can
Test items:Pressure/pressure resistance

Applications

CanNeed-ABT-100 Burst Buckling Tester for Aerosol Cans is used to determine the buckle value of bottom (dome) and Top end of aerosol cans and the pressure at which the can bursts. With the special designed clamp, it is able to measure the dome or bottom free ends independently. At high pressures from approximately 22 - 28 bars, it may happen that deformations of the valve and a higher burst pressure.

Advantages

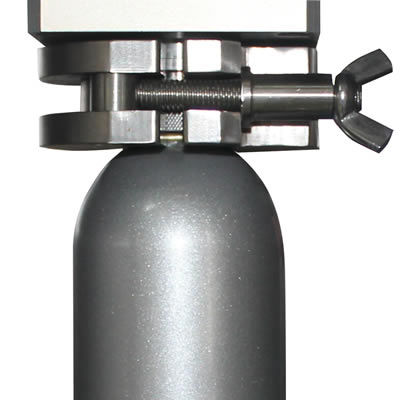

Special designed Clamps:
1. For Iron aerosol cans, sample can will stick to the chuck automatically, and air cylinder automatically seal the can .fast and reliable.
2. For aluminum aerosol cans, air cylinder automatically seal the can, then make use of the special hold-in-mechanism, to prevent the sample can falling off because of the deformation after pressure.

Technical Parameter

Pneumatic supply : 0.5 MPa
Working pressure : 0 - 4 MPa
Resolution : 0.05 MPa
Dimensions : 555 x 400 x860 mm (W x D x H)
Sample type : All types of aerosol cans
