Product Classification : Can Making----2-piece Can Testing
Total page:1 Current page:1 Total records:28 First | Previous | Next | Last
Goto page

CanNeed-ACBT-1000 Automatic Buckle Tester Bottom for Can

CanNeed-AFMS-2000 Automatic Can Measure Desk for Front Stations

CanNeed-AAXL-2000 Automatic Axial Load Tester

Seam-X-On-line X-Ray Automatic Seam Scanner(Non-destructive)

     The CanNeed ¡°Seam-X-On-Line X-Ray Automatic Seam Scanner¡± adopts non-destructive measurement method to measure the seam quality, suitable for measuring the aluminum cans, steel cans , aluminum-iron composite cans and etc. It¡¯s applicable for online in producing department. It¡¯s a non-destructive, cost saving, accurate measurement and automatic equipment which can be installed on the production line to improve the sampling frequency.


Advantages:
01)Non-destructive measurement, avoid wasting samples
02)Non-destructive measurement, avoid environmental pollution and save handling charges
03)High sampling frequency, reduce the isolation inferior
04)High sampling frequency, cost saving
05)Can track the chucks corresponding to the unqualified products
06)360-degree fully scan measurement
07)Can be suitable for various types of cans
08)Higher accuracy
09)Avoid manual measurement error
10)Durable
11)Accord with the worldwide safety standards


CMT-200 Mobility/ Lubricity Tester for Cans

The CanNeed ¡°CMT-200 Mobility / Lubricity Tester for Cans¡± is for measuring the coefficient of sliding friction of can body and bottom. It can also measure the coefficient of sliding friction of blanks.


Install the corresponding clamp and place the sample on the clamp, then put the bob-weight unit on the sample. Pull the bob-weight and the indicator will display the coefficient of sliding friction.

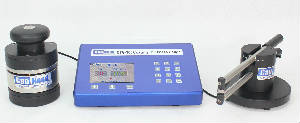

CTG-300 Coating Thickness Gauge

The Canneed's "CTG-300 Coating Thickness Gauge", equipped with aerodynamic levitation measuring head, provides a computer enhanced method of rapidly assessing lacquer film weight of both internal and external coatings on beverage and food cans, and also tinplate.
The system provides the following benefits to the Can and End manufacturer:Reduced lacquer consumption, Greater product quality, Better operating efficiencies and Lower spoilage.


CND-TRK-300 Oven Temperature Tracker
The CanNeed CND-TRK-300 Oven Temperature Tracker is a professional oven temperature curve inspection system for the coating industry, it is including the data logger, heat insulation case, software (Chinese / English) and thermocouples.

DER-400 Digital Enamel Rater
The CanNeed DER-400 Digital Enamel Rater is able to detect the exposed metal position more easily compare to the former models. The reformative electronic design makes it more sensitive, reliable and accurate. The anticorrosion characteristic of the enhanced can body support is ensured its durability. The film coated buttons are more durable and with better corrosion resistance.

CTG-4000 Wet Film and Coating Thickness
Application:
1. Test wet film and coating thickness,both save time and improve quality
2. Test both single layer and multilayer coating
3. Adopt non-contact optical technique,suitable for research,quality control and on-line control.
4. Can be used in Solar energe,optical coating,foods package,metal package field.Improve the quality by appearance,adhesion,resistant to corrosion and fricton,as well as scratch.

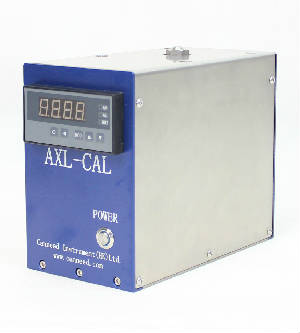

AXL-CAL Calibration Cell for Axial Load Tester
The CanNeed AXL-CAL use to calibrate the AXL-4000 Axial Load Tester. Place the AXL-CAL into the testing platform and rise up gradually until reaches the top plate, then the AXL-CAL will display the real time pressure, compare the value that displaying on the AXL-4000 to make the calibration.

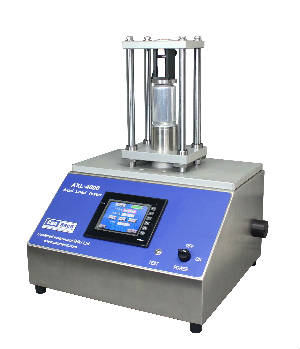

AXL-4000 Axial Load Tester
The "CanNeed AXL-4000 Axial Load Tester" measures the axial force resistance of beverage cans in Newton. The can is placed in a support and gradually forced upwards against the pressure plate. The space between the support and the top plate can be altered with spacers. The can crashes after the peak force has been applied that the can is capable of resisting. The maximum value can now be read in the display.

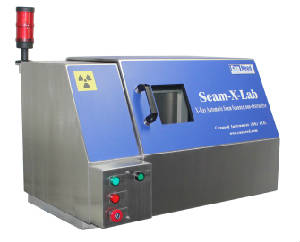

Seam-X-Lab X-Ray Automatic Seam Scanner
The CanNeed Seam-X-Lab is suitable for laboratory
Can open or close the door automatically£¬put in or take out the sample cans by manual operation
The CanNeed Seam-X-Line is suitable for laboratory
Can open or close the door automatically£¬automatic sampling
Purpose:
The CanNeed Seam-X-lab Automatic Seam Scanner adopts non-destructive measurement method to measure the seam quality, suitable for measuring the aluminum cans, steel cans , aluminum-iron composite cans and etc. It¡¯s applicable for laboratory or producing department.
Advantages:
1.Non-destructive measurement, avoid wasting samples
2.Non-destructive measurement, avoid environmental pollution and save handling charges
3.High sampling frequency, reduce the isolation inferior
4.High sampling frequency, cost saving
5.Can track the chucks corresponding to the unqualified products
6.360-degree fully scan measurement
7.Can be suitable for various types of cans
8.Higher accuracy
9.Avoid manual measurement error
10.Durable
11.Accord with the worldwide safety standards

CSS-P3 Portable Seam Saw
The CanNeed "CSS-P2 Portable Seam Saw" is a special seam circular saw with double cut for can double seam inspections. The CSS-P2 was specially designed for 2- and 3-piece cans. Also aerosol-cans may be sawed with this saw. The nitrated blades achieve a very plain cut surface. The seam image on "VSM Automatic Seam Monitor", and automatic seam measuring systems gets thereby very clear and improves measurement speed and reliability.

Seam Sight 3B Portable Full Automatic Seam Monitor

The CanNeed "Seam Sight 3B Portable Full Automatic Seam Monitor" is so small and portable to work with a laptop. It was packed with the CSS-P2 into a suitcase, specially designed for those who always on business trip.
The "Seam Sight 3B Portable Full Automatic Seam Monitor" has adopted the advanced optical system and Golden LensTM video capture device, which interference-free of external light source and ensured the high image definition and the measurement accuracy. The Seam SightTM system is equipped with the new seam measuring software - Seam SightTM.


CBT-200 Buckle Tester Bottom for Can

The "Canneed CBT-200 Buckle Tester Bottom for Cans" determines the exact pressure at which the can bottom begins to buckle respectively the dome reverses.
The empty flanged can or straight wall can is placed in the holder. After covering the device with a plexiglass hood pressure is applied. The can is sealed with a rubber o-ring structure. Fast pressure increase up to 5 bar (programmable to just bellow the expected buckle value), from there the "speed of pressure increase" may be set within the device. The test is terminated as soon as the can buckles. The maximum pressure value is shown in the display.


CEBT-100 Buckle Tester for Can and End
The "Canneed CEBT-100 Buckle Tester for Can and End" determines the exact pressure at which the Can and End begins to buckle.  With 4 measuring mode:Buckle Bottom For Can (Including straight wall cans, necked-in cans),Peak Test For Free End, Missile Test for Free End and Peak Test for Seamed End.
1. Buckle Bottom For Can (Including straight wall cans, necked-in cans)
2. Peak Test For Free End
3. Missile Test for Free End
4. Peak Test for Seamed End


CBBT-100 Burst and Buckling Tester for Can

In order to control the cost and quality,it is necessary for 2 piece can manufacturers to buy an equipment which can accurately test the compression strength and burst strength.
The CanNeed CBBT-100 is used to test the pressures values of 2 piece cans:buckle value,burst value.Record the 2 values automatically.
It can test different diamter and height of cans with different clamps.


SM-24 Electric Belt Drive Seamer
The Canneed "SM- 24 Electric Belt Drive Seamer" (Desktop model) enables the users to do more lab tests. Such as, adjusting some technique, enhancing the products quality, test the empty cans and free ends, to insert a temperature logger into a can before running a temperature monitoring.

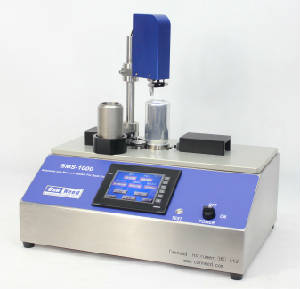

BMS-1000 Automatic Can Measure System for Back End
The CanNeed "BMS-1000 Automatic Can Measure System For Back End" is used to measure Flange Width, Can Height & Internal Diameter of 2-pc can. It¡¯s designed by practical experience and applied to back end inspection. It can be adjusted rapidly and applicable for various can height.

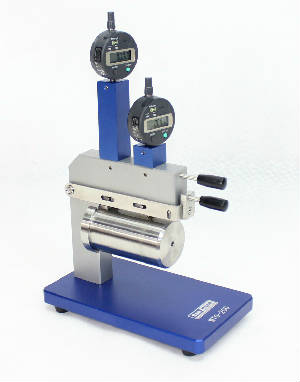

WTG-200 Wall Thickness Gauge
The CanNeed ¡°WTG-200 Wall Thickness Gauge¡± measures the Topwall and Midwall Thickness for Trimmed 2-Piece Cans. Available for any Trimmed 2-Piece Cans of any height (Please indicate the can height when ordering).

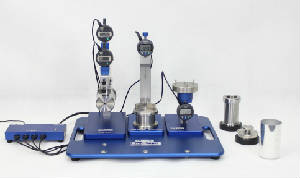

FMD-200 Can Measure Desk for Front Stations
The CanNeed "FMD-200 Can Measure Desk for Front Stations" is developed on basis of the long experience of Front Stations in 2 -piece can product line.
FMD-200 Measures the wall Thickness, Bottom depth, can height. Please indicate the can type when ordering.

CMD-200 Can Measure Desk for Rear Stations
The CanNeed CMD-200 Can Measure Desk for Rear Stations is developed on basis of the long experience of Rear stations in 2 -piece can product line.
CMD-200 Measures the Flange width, can height, inner Diameter. Please indicate the can type when ordering.

WTG-200 Wall Thickness Gauge
The CanNeed ¡°WTG-200 Wall Thickness Gauge¡± measures the Topwall and Midwall Thickness for Trimmed 2-Piece Cans. Available for any Trimmed 2-Piece Cans of any height (Please indicate the can height when ordering).

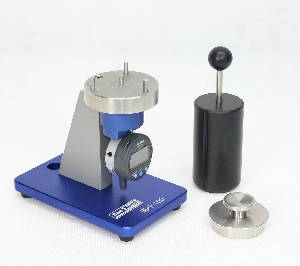

BDG-100 Bottom Depth Gauge
The CanNeed "BDG-100 Bottom Depth Gauge" is a Digital gauges for measuring Bottom depth parameters of beverage cans. Please indicate the can diameter when ordering. With the Mitutoyo 0.01mm Resolution Digital Indicator.

IDG-100 & IDG-200 Can Internal Diameter Gauge
This unit serves for quickly checking the Internal Diameter of can. It is equipped with a calibration piece.
IDG-100 is for small diameter cans, Cans dia. 52-100 mm (only measure one type can)
IDG-200 is for large diameter cans, Cans dia. :80-260 mm (only measure one type can)

DHG-300 Digital Can Height Gauge
The CanNeed "DHG-300 Digital Can Height Gauge" can be used to measure the height of beverage, food, and aerosol cans. The gauges can be connected to a computer or SPC system via the adapter and cable.

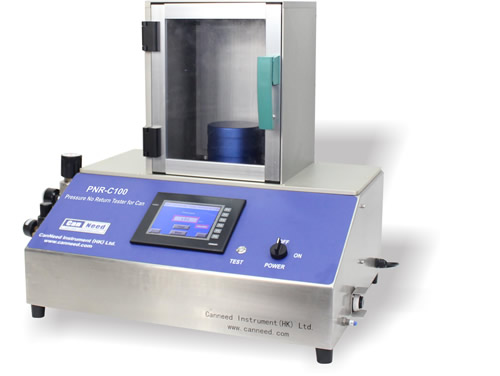

PNR-C100 Pressure No Return Tester for Cans on Bottom
The CanNeed "PNR-C100 Pressure No Return Tester for Cans on Bottom" can measure the PNR value (Plastic Deformation) and the buckle value of the can bottom. During the whole pressurization process, use the micrometer to track and measure the deformation amount, generate the curve through the software and analyze the correlation between pressure and deformation amount of the can bottom.

EPS-100 End Profile Systems

The CanNeed ¡°EPS-100 End Profile System¡± is used to measure the end dimensions. It is with excellent
performance by adopting precise optics measuring technology, measuring the end dimensions precisely.The inaccuracy of end dimensions usually cause to such double seam defects as fault sealing, bearing
cover and false sealing and so on. It is hard to measure the profile dimensions of ends without EPS-100.
