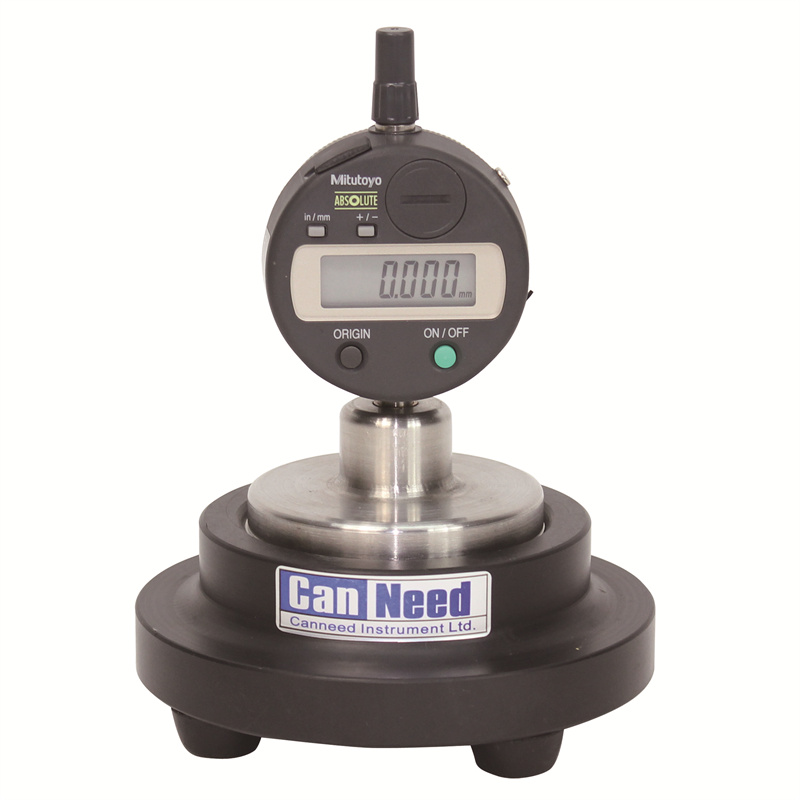

CanNeed-PDG-d

Plane Depth Gauge for Canned Food and Beverage

Description

Applications

CanNeed-PDG-d Plane Depth Gauge for Canned Food and Beverage is
used to measure the plane depth of canned food and beverage. It can monitor the
inner pressure or vacuum of the cans without piercing the cans.



Advantages

  • CanNeed-PDG-d
    consists of plane depth gauge and ZERO calibration platform
  • If purchased the adapter and cable, the gauge
    can be connected to a computer or SPC system for data collection, avoiding any
    labor to record the data

Technical Parameter

  • Measuring range: 0-10mm (other sizes made by order)
  • Resolution: 0.001mm
  • Accuracy: +/-0.003mm
  • Dimension:ɸ10.6*H130mm

Additional information

Detection Object

Canned beer/canned beverages/canned food

Test Items

Pressure/pressure resistance

Testing Occasions

laboratory
