Home / Products List / CanNeed-CAN-7001/7002 CO2 Tester and Pressure Tester

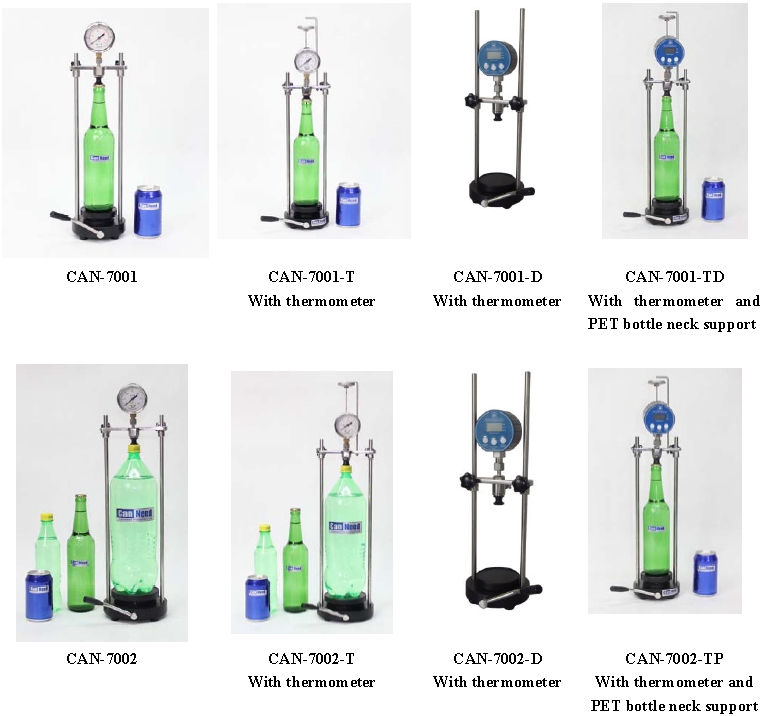

CanNeed-CAN-7001/7002
CO2 Tester and Pressure Tester

Testing occasions:laboratory
Detection object:PET bottled drinks,Canned beer, drinks,Glass bottled beer, beverage, Baijiu
Test items:carbon dioxide

Applications

CanNeed-CAN-7001, CAN-7002 CO2 Tester and Pressure Tester is for measuring the CO2 content in carbonated beverages filled in glass and PET bottles or cans. It is designed according to ASBC Theory of American Society of Brewing Chemists, corresponding to “GB/T 4928 – 2001 Brewing Analysis Methods” and “GB/T 10792 – 1995 Carbonated Beverage Analysis Methods”. Therefore, the machine is widely used by Quality and Technical Supervision Bureau and beverage enterprises.

It is applicable to the bottles or cans with different sizes. After the sample is pierced, the pressure is read on the pressure gauge as soon as the equilibrium pressure is achieved. The CO2 content is determined by means of the CO2 slide rule or temperature/pressure relationship charts.


Advantages

Instead of energy-consuming pressing-down piercing mode, the machine adopts lifting-up piercing mode, making the operation more convenient and energy-saving.

The machine is simple in structure and convenient in application. Equipped with a pressure manometer of high accuracy and a thermometer of standard, it can ensure the accuracy and reliability of the results.

If used together with IAM-30 Air Meter, it can test CO2 content as well as the air Content.

Technical Parameter

Pressure measuring range:0.6 Mpa,  Resolution: 0.01Mpa
Temperature measuring range: 0-50℃,  Resolution: 0.1℃
Sample capacity:
Height: CAN-7001, max. 330mm
          CAN-7002, max. 410mm
Bottom Diameter: CAN-7001, max. 102mm
                          CAN-7002, max. 115mm
(Larger by ordering)

Dimension: 200mm (W) x 130mm (D) x 400mm (H)
Weight : 2kg
* IAM-30 Air Meter (please order for option)
Air content Measure range: 0-30ml
Resolution: 0.05ml.
