Home / Products List / CanNeed-SM-24 Electric Belt Drive Seamer

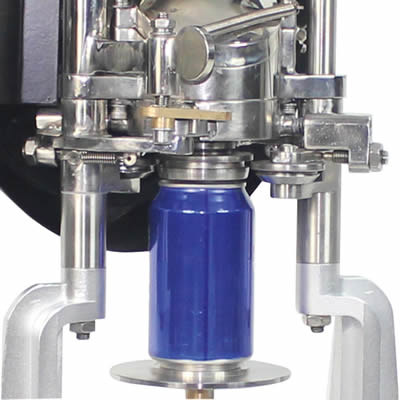

CanNeed-SM-24
Electric Belt Drive Seamer

Testing occasions:laboratory
Detection object:Two-piece can/aluminum bottle,Canned beer, drinks,Cosmetics/drugs/bagged food,General purpose
Test items:Double Seam

Applications

CanNeed-SM-24 Electric Belt Drive Seamer (Desktop model) enables the users to do more lab tests.
Such as, adjusting some technique, enhancing the products quality, test the empty cans and free ends, to insert a temperature logger into a can before running a temperature monitoring.  It is much more convenient for those lab tests, fast, easy and high efficiency

Advantages

1. Small size, can be a lab desktop using.
2. Seam the cans automatically, just place the can onto the holder, push down the handle, the motor will drive to finish the seaming itself.
3. The cam curve automatically controls the matching between the rolling cans and compaction of the roller, so that to get the perfect seam structure.
4. The seam structure is adjustable, operator can adjust the body hook length, overlap rate, seam thickness, etc., the adjusted structure will be stable and not affected by the operators.
5. The whole seaming process takes only about 15 seconds.

Technical Parameter

  • Sample can dia.  : 200 - 404  (diameter 50 - 108mm)
  • Max. can height  : 127 mm (higher by ordering)
  • Sample type  : beverage and food cans
  • (The seamer is applicable to only one (1) type of can and end when ex-factory, should multi-can types be applied, please indicate when enquiring.)
  • Power supply : 230V/50Hz
  • Dimensions  : 390 x 350 x 800 mm
  • Weight : 35 kg
