Home / Products List / CanNeed-BCI-100 Bottle Cap Impact Tester

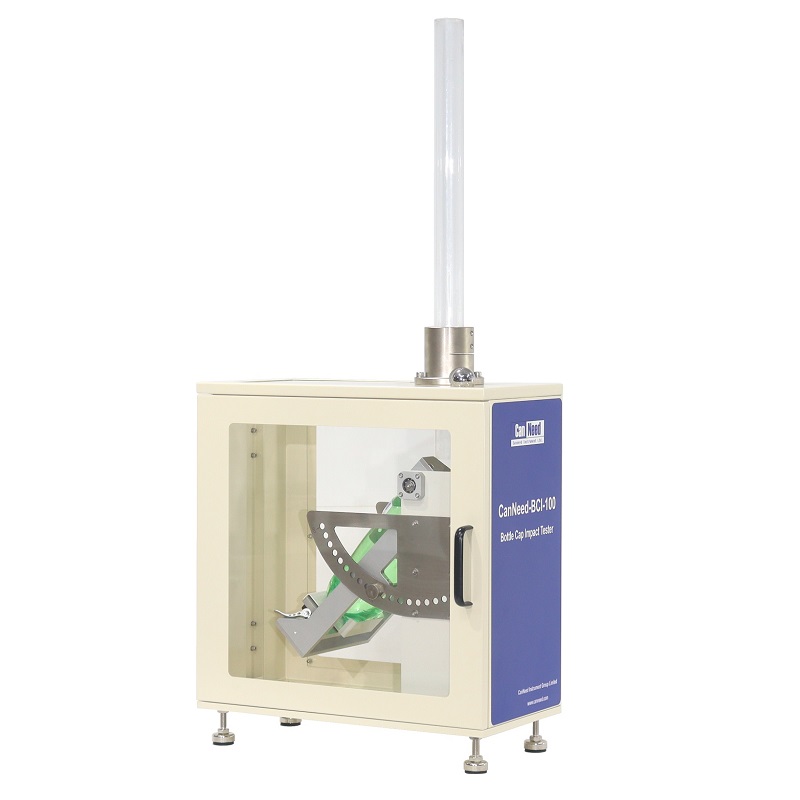

CanNeed-BCI-100
Bottle Cap Impact Tester

Testing occasions:laboratory
Detection object:PET bottled drinks,Cosmetics/drugs/bagged food
Test items:Tightness/Leakage

Applications

CanNeed-BCI-100 Bottle Cap Impact Tester is used to test the impact resistance of various plastic bottle caps  under the impact of steel balls at a certain height.

The application meets to the test requirements of standard GB/T17876-2010 6.4.4.

Advantages


1)Adjustable bottle holder, compatible with bottles of different diameters and heights;

2) Side door type, easier to place or take out bottles, easy to observe the damage;

3) Catheter positioning, can accurately hit the test position;

4) Angle adjustable, high compatibility to different samples;

5) Sealed design to avoid steel ball falling out;

6) Metal chassis, high durability;

7) Insert fixed probe, safe and reliable, prevent side tilt from affecting test results




Technical Parameter

Measure range

PET bottle with cap, bottle diameter 0-120mmbottle height 0-350mmbigger size for customized ordering

Place sample mode

Individual station, manual placing samples

Power supply, Tester size, Net weight and Material

220V/50Hz,  L600*W300* H1300  Weight45KG

Chassis Material: Carbon steel painting Q235

Environmental requirement

For indoor use, RH(relative air humidity) ≤ 85%Temperature0℃-40℃
