Home / Products List / CanNeed-ABPT-1000 Automatic Ramp Pressure Tester

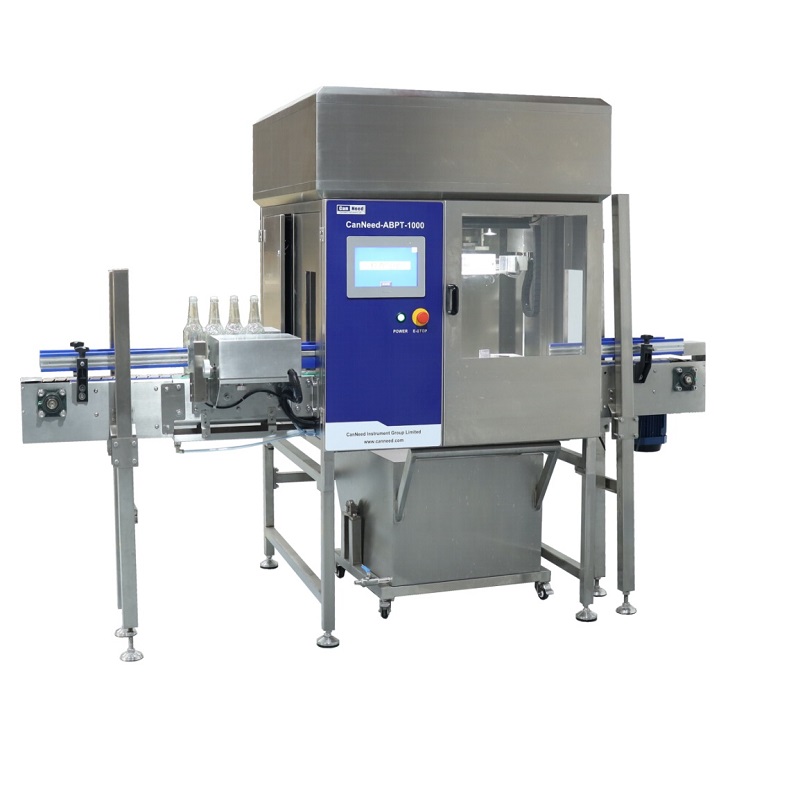

CanNeed-ABPT-1000
Automatic Ramp Pressure Tester

Testing occasions:Online/packaging line
Detection object:Glass bottled beer, beverage, Baijiu
Test items:Pressure/pressure resistance

Applications

CanNeed-ABPT-1000 Ramp Pressure Tester is used to test the internal pressure resistance of glass bottles, and can meet two different test requirements of passing and burst modes.

Auto Sampling,Auto Filling, Auto Clamping, Auto TestingAuto Saving Measuring Data PLC control, touch screen Operators just need to select the required mode and options on the display panel, and complete the measurement requirements. It is really simple and convenient.

3 test modes, meet different needs of customers.

CanNeed-ABPT-1000 Ramp Pressure Tester has three test modes: Pressure Maintaining Mode, Linear Pressurization Mode, P60 mode; Three test modes, parameters adjustable, and can be set to meet the various testing requirements of different customers.

Complies with American ASTM C147-86 standard, national standard GB/T 4546-2008, ISO/CD7458, and meets CE certification.

Technical Parameter

  • Measure range 0--6 MPa
  • Resolution 0.01Mpa
  • Test rhythm: 20-25 seconds per bottle (linear pressurization mode)
  • Water supply 0.5-0.3 MPa
  • Compressed air: 0.4-0.6 MPA
  • Working temperature 0-50º C
  • Power supply 110-120 or 220/240VAC @ 50/60 Hz
  • Output interface RS232
  • Dimensions L1600*W1300*H1950mm
  • Weight 420KG
