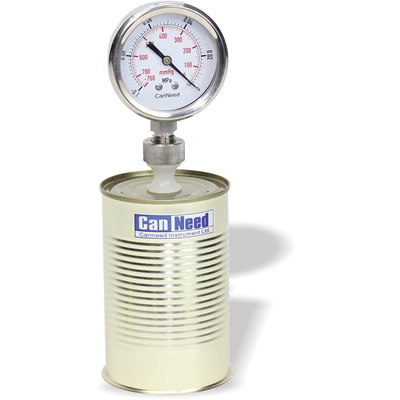

The CanNeed CVG-100 and CVG-200 Canner’s Vacuum Gauge” is used for measuring the vacuum pressure of seamed cans. And the “CVG-200-PET Beverage Vacuum Gauge” is for measuring the vacuum pressure of beverage. The gauge is placed on top of the can or bottle and the piercing needle is forced through the top of the can or bottle. The rubber collar forms a temporary seal to allow for measurement.

CVG-100 is designed for using near the production line, Consists of a 0 to 76cm/Hg vacuum gauge, pierce point, and rubber collar. Also available with dual scale to measure pressure to 15 psi.

CVG-200 and CVG-200-PET is designed for using in lab, Consists of a holder, a 0 to 76cm/Hg vacuum
gauge, pierce point, and rubber collar. Also available with dual scale to measure pressure to 15 psi.

Measure range : -0.1 - 0 MPa (-15 - 0 Psi or -76 - 0 cm/Hg)
Resolution : 0.005 MPa
Accuracy : ±2.5%（±0.0025 MPa）
