Home / Products List / CanNeed-PTM-100 PU Monitor Pasteurization Temperature Monitor

CanNeed-PTM-100
PU Monitor Pasteurization Temperature Monitor

Testing occasions:Online/packaging line
Detection object:Glass bottled beer, beverage, Baijiu,Canned beer, drinks,General purpose
Test items:Temperature/PU/F0

Applications

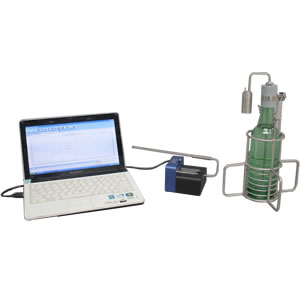

CanNeed-PTM-100 Pasteurization Temperature Monitor (PU Monitor) is used to test the temperature in the can/bottle in the pasteurization process. It can also test the temperature of the spraying water. It calculates the PU value and displays the temperature graph on the computer through CanNeed software or print report through printer.
Suitable for: canned beverage, beer products, can, glass bottle containers

Advantages

1) Quick response without the lag of temperature
2) Reasonable design, height of PU monitor lower than of pasteurizer.
3) Able to test beer in various bottle sizes or in various can size. Dual channel of signal, able to test temperature in bottle or water temperature
4) Able to measure the total PU value, killing PU value (PU value that obtained when temperature is above 60℃), max. wine temperature, max. water temperature and total runtime.
5) Print the temperature graph via a printer
6) The powerful software CND-LogSee is able to review, analyze, store and print the data or graph.
7) Can abate the PU value of random period of time, convenience for evaluating the production plants.
8) Can custom multiple PU calculating formulae, like setting to calculate the PU above 50℃ or 60℃.
9) Can save and export the data to Excel files.
10) Each probe is an independent PU monitor, to monitor several sterilizing lines with several probes at the same time.
11) Suitable for bottles/cans with various capacity and size.
12) Use the new style protecting base, firm and durable.
13) Small size, light and easy to carryover.
14) The logger and temperature probe is a stainless steel weldless one-piece design, which ensured its excellent sealing.

Technical Parameter

  • Dual channel: 2 temperature monitoring
  • Test range:-20~125℃
  • Accuracy:±0.3℃
  • Resolution:±0.1℃
  • Pressure endurance:2MPa
  • Sensor: Pt100
  • Data collecting interval:1s-8h,adjustable
  • Memory:18000 readings(if data collecting interval is 5s,can record for 25 hours)

Configuration:
1) Dual channel temperature logger, PU-125,1pc
2) Data Transmitter CAN-TR,1PC
3) Communication cable,CAN-USB,1PC
4) Software CND-LogSee,1set
5) Seal components,CAN-BFL,1pc
6) Fixture, CAN-BBAS,1PC
(Optional for data processor CAN-200P)
