Home / Products List / CanNeed-TT-200 Torque Tester

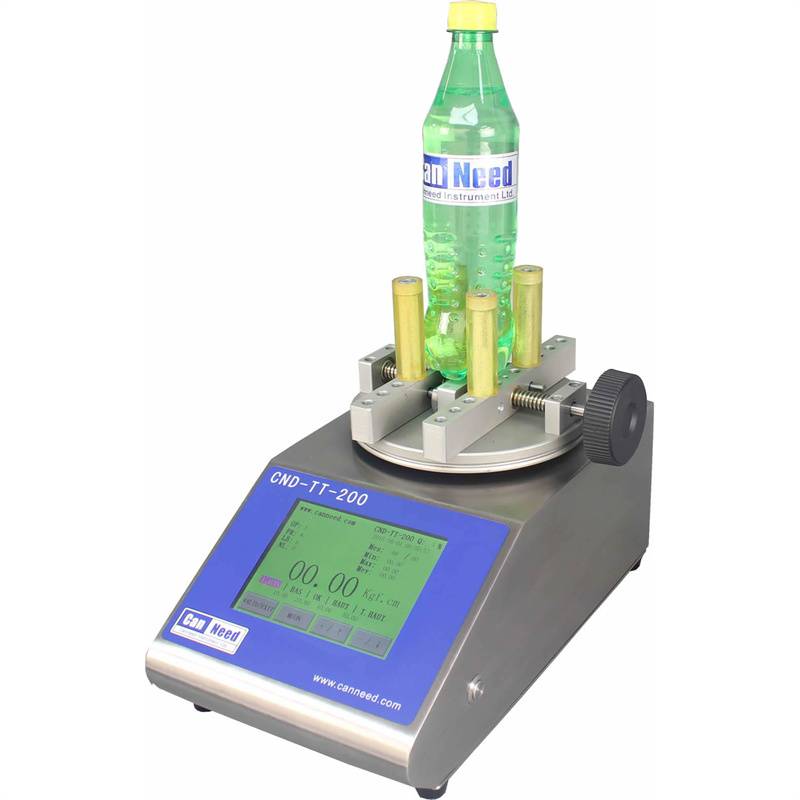

CanNeed-TT-200
Torque Tester

Testing occasions:laboratory
Detection object:PET bottled drinks,General purpose,Metal cap/crown cap/tab cap/screw cap/claw opening cap,Glass bottled beer, beverage, Baijiu,Canned beer, drinks
Test items:Torque/Torque

Applications

Applications: Food-industry / Cosmetic/ Pharmaceutical / Chemical / Metrology
CanNeed-TT-200 Torque Tester is a professional equipment which is used to test the caps’ “capping torque”and “songaila torsion “for bottled products.It is industry standard with excellent performance.Users can option software.

Advantages

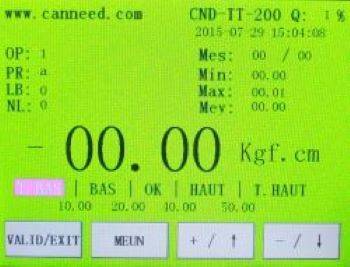

1. Powerful display interface
1.1 Highly accurate measurement: The accuracy of CanNeed-TT-200 is up to ± 0.5 % of the full scale, while the accuracy of other common torque testers is ± 1%.
1.2 Able to display the measuring and calculating the average, mini. and max. values at the same time.
1.3 The users can shift various units : Kgf.cm / Inch.lbs / daN.cm / N.cm / N.m
1.4 Adopt rechargeable lithium battery and display the remaining power
1.5 Able to set any alarming values
1.6 Clearly record: the operator “OP”, the product “PR”, the line number “LB”, the lot number “NL”
1.7 Able to define the thresholds values: very low “T. BAS”, low “BAS”; normal “OK”, high “HAUT”; very high “T. HAUT”

2. Simple calibration device
Professional two-in-one calibration device CanNeed-TT-CAL is available, simple and easy to calibrate at any time in any places.

3. Powerful data output
CanNeed-TT-200 was equipped with 2 standard RS 232 ports. One is used for PC, while the other is used for mini printer.

4. User-friendly fixture design
4.1 Adjustable cassette-type fixture, applicable for bottles with vavious dimensions and shapes.
4.2 Cassette-type fixture can be changed to be other special clamps to test special bottles.
4.3 With large screws to clamp the screw rods, it is quick and easy to install and clamp.
4.4 The two newly added guide poles can effectively balance the guide bar, making the measurement more accurate.
4.5 Quick clamp for cassette-type fixture, to accurately and quickly change the samples.
1) Quickly install the clam   2) Adjust the position of the fixture   3) Quickly change the samples   4) Quickly clamp  the samples

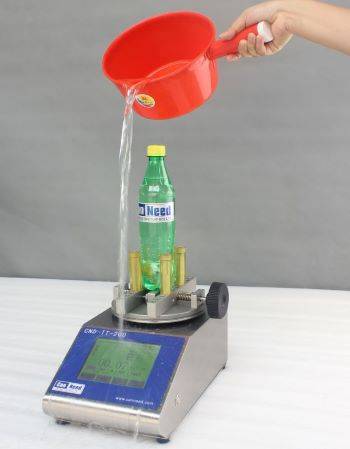

5. Water-proof design
Unique maze-type water-proof gap, effectively prevent the water.

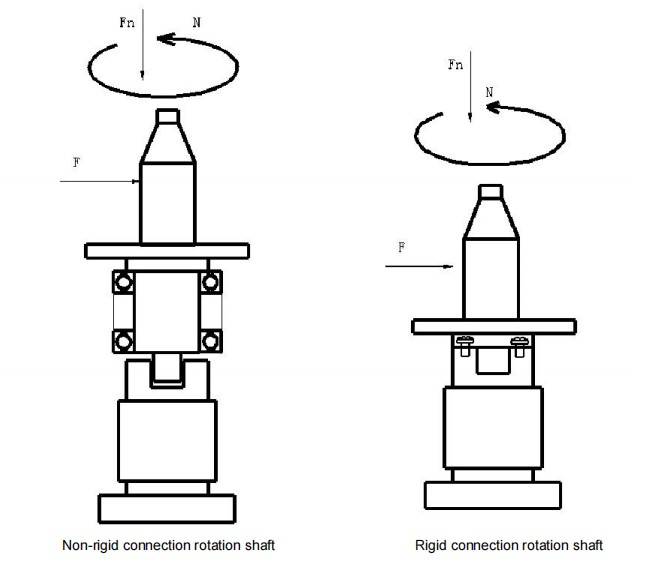

6. Non-rigid connection rotation shaft design
Non-rigid connection rotation shaft, when it is born with forces from the side and the top, there is slight
effect on the torque sensor. It can effectively avoid the effect of the forces from the side and the top on

the measurement and reduce the human errors.

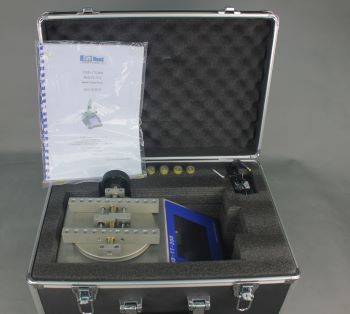

7. CanNeed-TT-200 is provided together with a special suitcase, convenient and elegent.


Technical Parameter

  • Measuring range A : from 00.00 to 99.00 inch.Lbs
  • In High-accuracy mode: from 0.000 to 4.500 inch.Lbs
  • Accuracy:± 0.5 % of the full scale
  • Units available : Kgf.cm / Inch.lbs / daN.cm / N.cm / N.m
  • Power: 220V, 50Hz

SPECIFICATIONS:

  • Memorization of 4 thresholds : very low; low; high; very high who permit to detect and display
  • Message of quality in relation with the detected torque ( visualization on bar-graph )
  • Set the file with administrator password
  • Measures in screwing and unscrewing.( opening and closing )
  • Memorization of 1000 measuring results (able to be output)
  • Over large touching screen to operate and display
  • Batteries are chooseable
  • Three (3) measuring modes (Common, Peak Value, Peak Value + Memo)
  • Print the measuring results and statistics (hour + date)
  • 2 RS outputs (computer – printer)
  • 30 products can be memorized
  • Analog output
  • The clients can also choose the measuring software by orders.
  • Display: the products, the operator, lot number, production line number
  • The clients can also choose the mini printer by orders.
  • Dynamic visualization: statistics, hour, date
  • Stainless steel design / IP 64 Protection
  • Other display statistics and defined display
  • Choice of the languages: Chinese, English
  • Measuring platform: food industry / Cosmetic industry
