Home / Products List / CanNeed-ATT-100 Automatic Torque Tester

CanNeed-ATT-100
Automatic Torque Tester

Testing occasions:laboratory
Detection object:PET bottled drinks,Cosmetics/drugs/bagged food
Test items:Torque/Torque

Applications

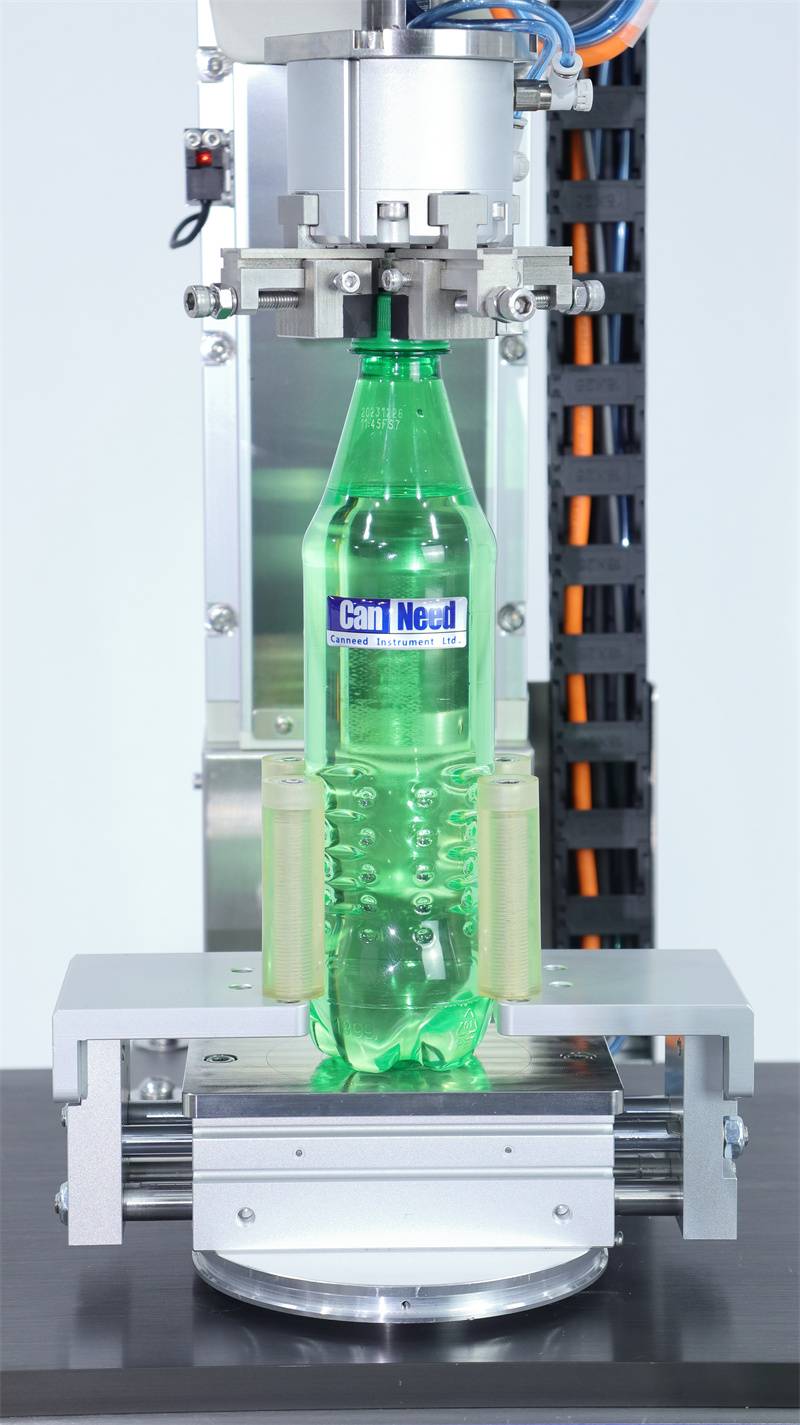

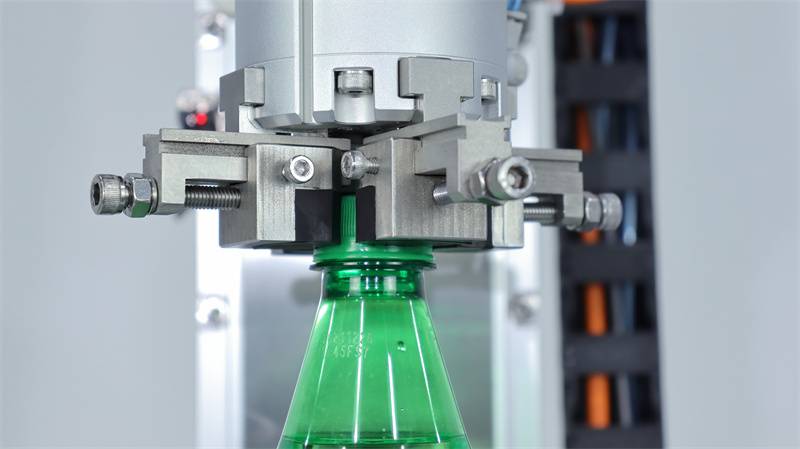

CanNeed-ATT-100 automatic torque tester is used to realize controls of torques in laboratory or near the bottling line making total abstraction of the human factor during the measure. The operator only need to put down the sample on the machine and press the start button.

Advantages

● Measures in screwing and unscrewing.(opening and closing)
● Dynamic visualization of statistics ( mini, maxi, average + standard deviation for the printing)
● Visualization of the chosen thresholds ( graphic representation and value )
● Choice of the kind of  measurement plate : bottling-food industry (4 contacts) or cosmetic (system in V)

Technical Parameter

● Measuring range  A : from 00.00 to 99.99Kgf.cm / 9.999 N.m
● 0.050 to 3.999 Kgf.cm (in " accuracy " mode ) and 0.001 to 2.999 on request
● Accuracy :   0,2 % of the full scale
● 2 RS 232 C outputs : printing of the values and invoice of the values in the same time to  SPC system.
● Units available : Kgf.cm / Inch.lbs / daN.cm / N.cm / N.m
