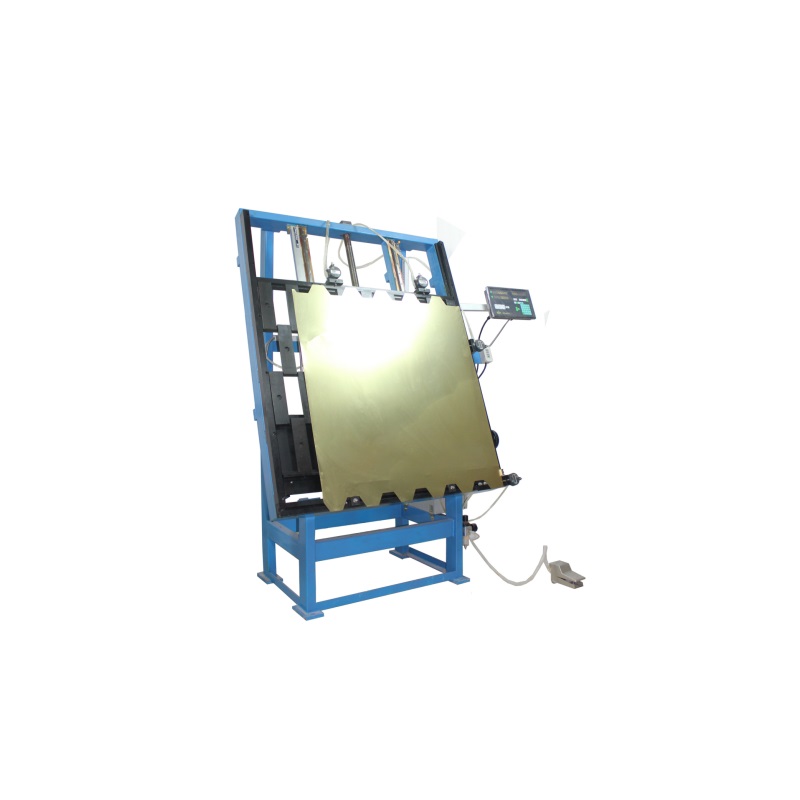

CanNeed-ZME-1220
Digital End Blank Gauge for Scroll Cut
Description
Applications
CanNeed-ZME-1220 is to measure the following items of the end blank:
1. Length
2.Parallelism
3. Perpendicularity (angle)
4.Reference points
1. Length
2.Parallelism
3. Perpendicularity (angle)
4.Reference points
Advantages
- Simple operation with the help of a incremental ruler/ fine measuring gauge combination and digital indicators
- Accurate, repeatable, user-independent results
- Continuously displaying readings
- Technical Data
Technical Parameter
- Measuring range: 500 – 1220 mm
- Resolution: 0.005 mm
- Accuracy: 0.02 mm
- Length: 1300 mm
- Width: 720 mm
- Height: 1800 mm
- Weight: 300 kg
Additional information
| Detection Object | End/crown cap/tab cap/screw cap/claw opening cap |
|---|---|
| Test Items | Dimensions |
| Testing Occasions | laboratory |
