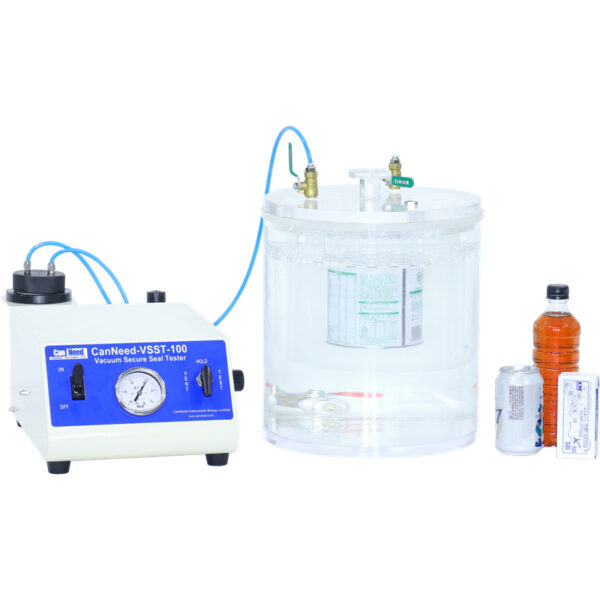

CanNeed-VSST-100 Vacuum Secure Seal Tester is a special instrument used for checking the sealing of soft packaging, to prevent air leakage, effectively control the quality of packaging sealing. Apply to National and Industrial Standard of GB/T 1571-94 secure seal test method of soft packaging.
CanNeed-VSST-100 Vacuum Secure Seal Tester has split design and a variety of safety measures. Including pressure regulating valve and exhaust valve for fast gas exhausting. Test method: Put the sample into the vacuum tank, take water as the medium, and then conduct vacuum negative pressure test to test the sealing of the soft packaging.
Technical Parameter
Measure range: 0~ -90 kpa
Precision: 0.1 kpa
Input air pressure: 0.4~0.6mpa
Sample applicable diameter: 260mm, Sample height: 230mm
Each measurement number: To test 1 pc by manual.
The instrument contains pressure test valve, which can conduct pressure test test according to the customer demand.
The instrument contains a water filtration buffer cup device to prevent water suction from damaging the pneumatic elements.
The instrument contains a pressure reducing valve, which can be tested according to the negative pressure value required by the customer.
Instrument working environment: indoor environment, air humidity 85%, indoor temperature 0~40℃.
Instrument material: cold-rolled steel plate spraying box and no electronic original. It is safe, reliable and durable.
