Description
Introduction

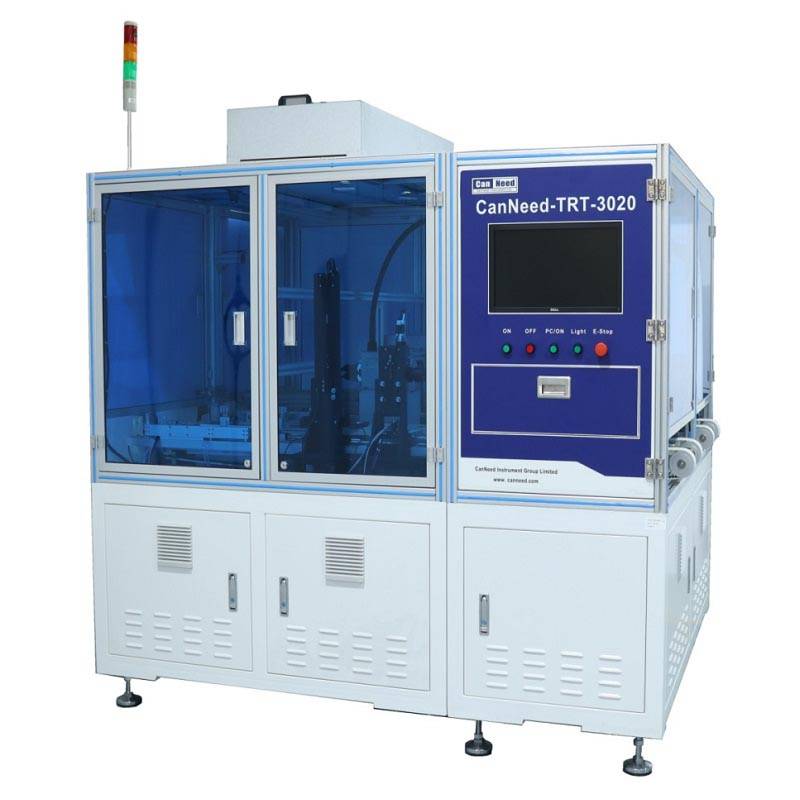

The TRT-3020 is a fully automatic testing equipment designed for measuring the transmittance of multiple IR holes. Its structure is suitable for automated inspection of large screens, capable of automatically measuring displays from 6 inches to 12 inches. Users simply place a stack of material trays, and the machine automatically measures the IR holes of all covers. No operator intervention is required for loading or unloading individual pieces. The machine performs fully automated detection, including loading, unloading, testing, OK/NG judgment, and rejection of non-conforming products.

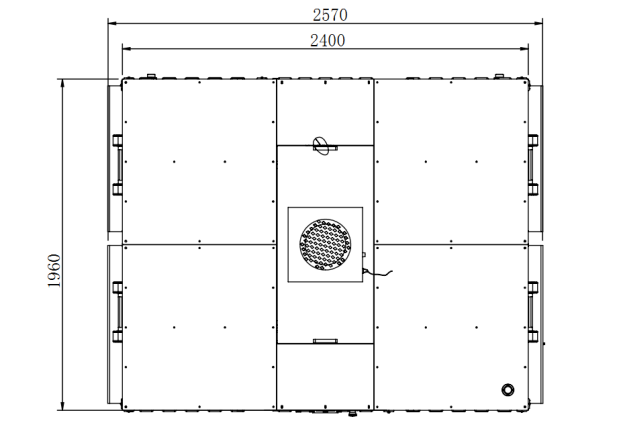

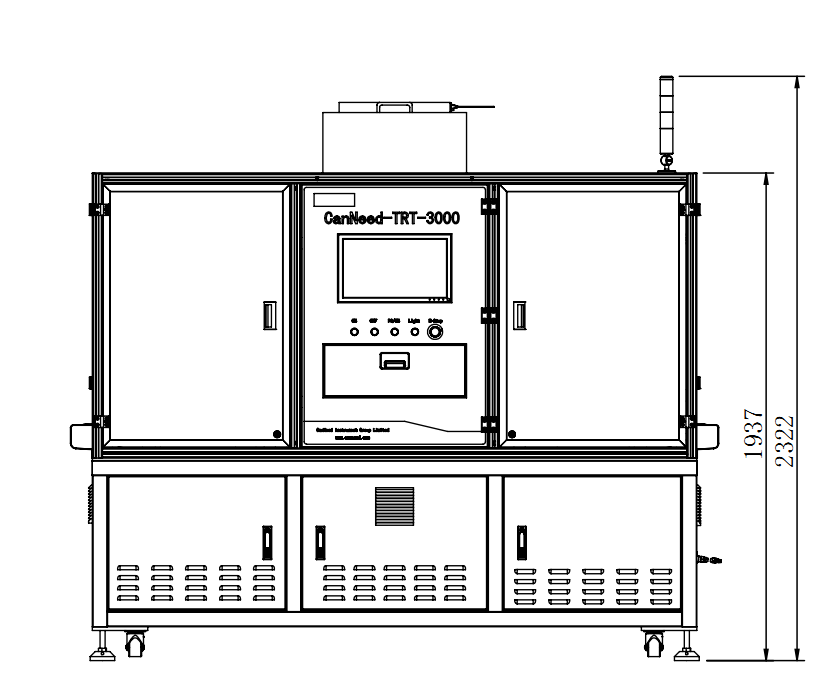

Overall Dimension Diagram
|

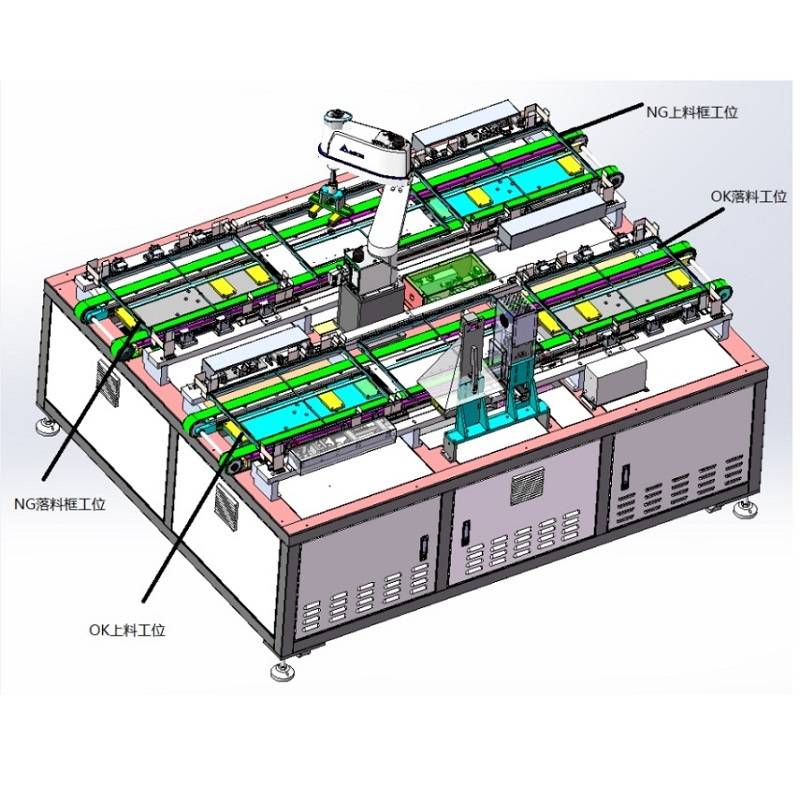

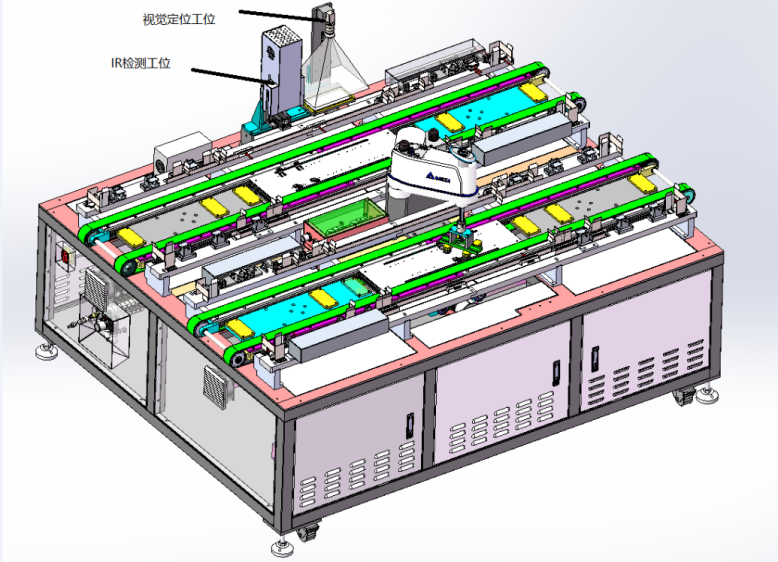

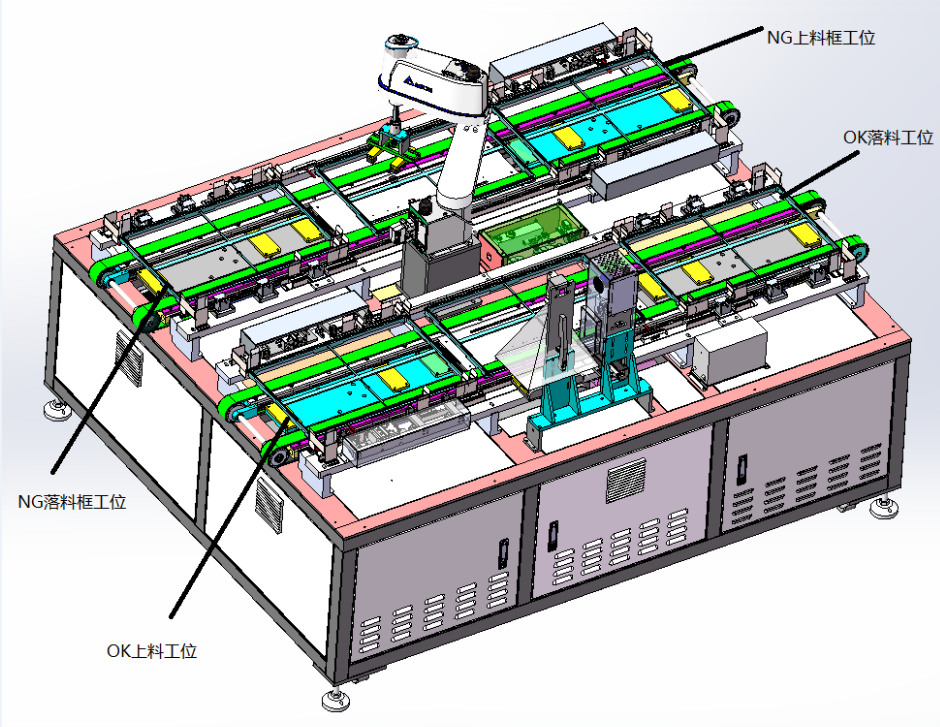

3D Appearance and Dimension Diagrams |
|
 |
 |
 |
 |
Otstanding Performance
| No. | Description |
Image |
|
1 |
Fully Automatic Loading, Unloading, and Detection: Both the loading and unloading areas can stack 40 trays each (typically 160 pieces total based on 4 pieces/tray, subject to frame height). |
 |
|
2 |
Higher Detection Accuracy: Achieved through camera vision alignment. Automatic NG Handling: NG samples are automatically collected via material boxes. Automated Sorting: OK products are returned to their trays; NG products are also returned to trays, with automatic tray handling for recycling. |
 |
|
3 |
Integrated System:The detection unit and automated motion system are integrated into a single system, offering easy operation and clear visibility of production information. |  |
|
4 |

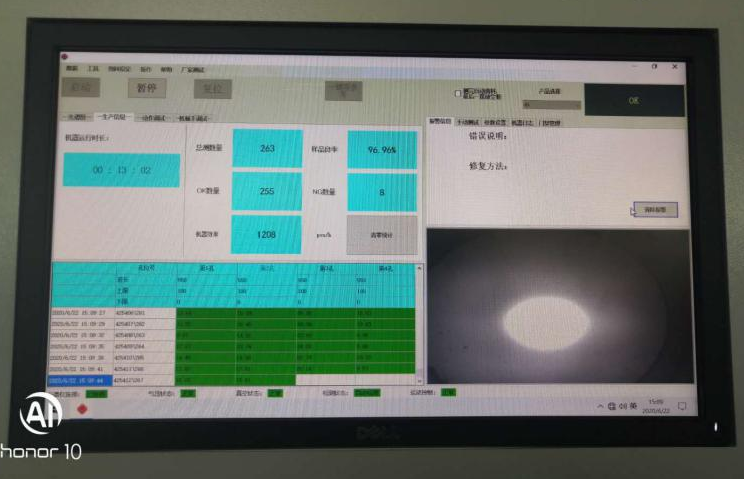

Software Advantages: 4.1 Program Management: Save and recall product-specific parameters (IR hole count, position) for quick and easy measurement setup. 4.2 Flexible Wavelength Setting: Configure different measurement wavelengths for different IR holes on the same product. 4.3 Data Storage: Measurement results are saved to a local database and stored permanently unless deleted. 4.4 Reporting: Generate transmittance reports for multiple IR holes at a single wavelength or for a single IR hole across continuous wavelengths. Reports can be exported to Excel, Word, PDF, etc. |
|
Parameters and Configuration
| Parameter | Specification |
| Detection Method | Fully Automatic |
| Detection Speed | 750-800 pieces/hour (per hole) |
| Positioning Method | Vision Positioning |
| Positioning Accuracy | 0.03 mm |
| Detection Spot Size | 0.3 / 0.5 mm (0.5mm default) |
| Product Handling & Motion | 4-Axis SCARA Robot |
| Transmittance Detection Method | Integrating Sphere Collection |
| Transmittance Repeatability | ±0.05 % |
| Transmittance Accuracy | Error < 0.3% compared to standard reference |
| Transmittance Resolution | 0.01% |
| Detection Wavelength Range | 400 – 1000 nm |
| Wavelength Accuracy | < 1 nm |
| Wavelength Repeatability | < 0.1 nm |
| Single Hole Detection Speed | < 1 second |
| CCD Auxiliary Observation | Camera vision-assisted observation
(Observe spot position on IR hole via software, eliminating manual visual error) |
| Ambient Light Blocking | Special blocking structure reduces errors caused by ambient light |
| Sample Range | 6 – 12 inch |
| Adjustable Tray Range | Length: 500 – 675mm, Width: 385 – 500mm |
| Light Source | 100W High-power Halogen Tungsten Lamp |
| Warm-up Time | 5 minutes |
| Loading/Unloading Capacity | 40 trays (Varies by tray height, tolerance ±2-3 trays) |
| NG Material Handling | Automatic handling via trays |
| Alarm Mechanism | Three-color light + Buzzer |
| Control System | Motion Control Card |
| Handling Structure | Robotic Arm (400mm stroke) |
| Power Supply | 220 VAC |
| Equipment Dimensions (LxWxH) | 2570 x 1960 x 1937 mm |
| Equipment Weight | 1800 kg |
Note: Equipment acceptance and operational standards shall be based on the parameters listed above.
