Description
Applications

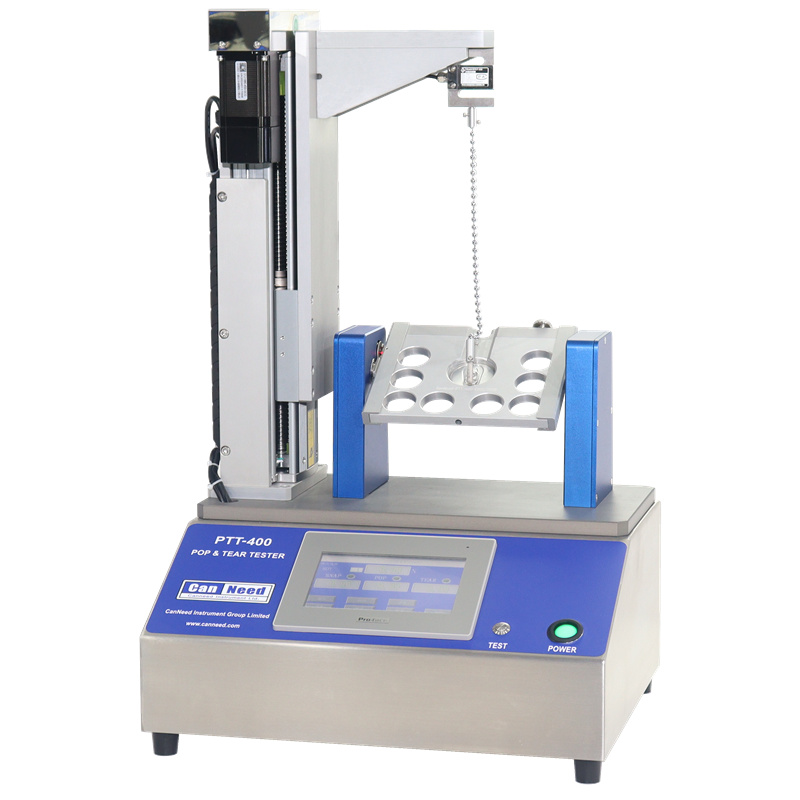

CanNeed PTT-400 Pop & Tear Tester was developed for testing different kinds of easy open ends. It can measure the Pop & Tear force, ring rotary force and ring detaching force.
Adopted 7 different testing modes: RP / SOT / EO / OVAL / SNAP / RF and RPP. OVAL mode can test both OVAL and FSE ends. SNAP mode can test both SNAP and ALUFIX ends. VF mode is for ring rotary force measurement while RPP mode is for ring detaching force measurement.
Applicable to various types of ends, here to be shown 7 types: RP / SOT / EO / OVAL / FSE / SNAP and ALUFIX. It’s also suitable for sample ends from types of 113 to 603 (round ends). Oval or rectangular ends needs customized clamp for test. Oval ends diameter or longer length of rectangular should not be longer than 163 mm.
Operators just need to hook the ring and press “test” button, then the PTT-400 will do the test automatically. During the testing process, the microprocessor will monitor and record the max. Pop and Tear force. Equipped with different sizes of the clamps, it is able to test different sizes of ends.
Advantages
- Industry Standard
- Optional for CND_Track analyzing software.
- Simple operation
- RS-232 Communications Capability, can export data to SPC.
- PLC touch-screen control system, Auto data collection.
- High accuracy
- Calibration function, convenience for calibrating.
- No need the air source
Technical Parameter
Measuring range : 0-100N(More ranges available)
Resolution : 0.1 N
Sample can spec : 113 – 603 (round ends, should
mention the size before ordering)
Interfaces : RS232C
Units : N
Power supply : 230V/50Hz
