Description
Purpose:

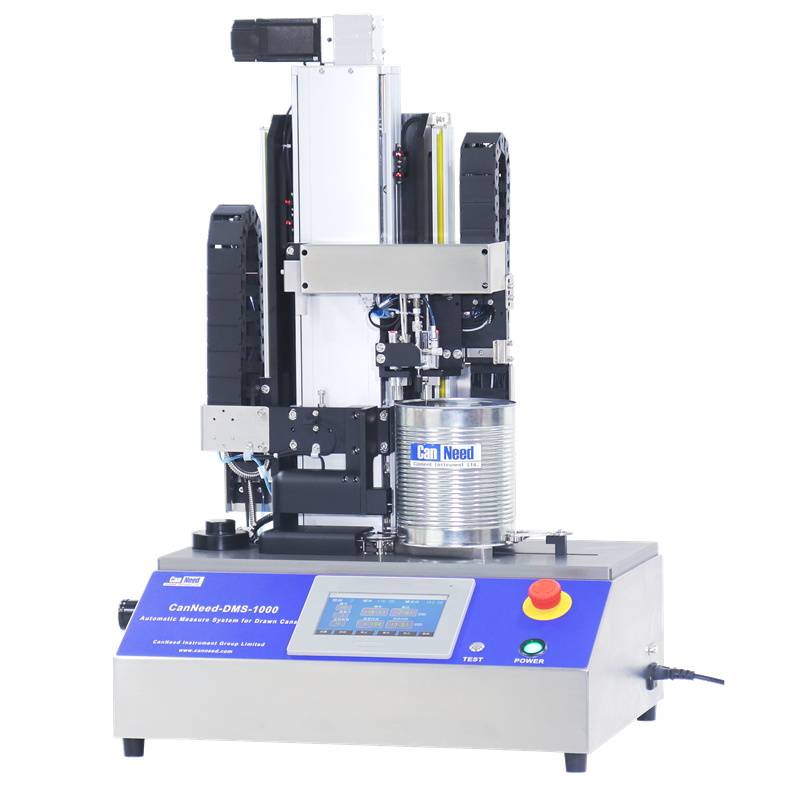

CanNeed-DMS-1000 Automatic Measure System for Drawn Cans is used to measure Flange Width, Can Height, the bead depth and the bead space distance of the can body and the can top, can also measure the bead of three-piece cans with sealed bottom lids. No fixture changes required.
Benefits:
- Mechanical structure is simple and reliable, easy to maintain;
- Full automatic can rotation and measurement , no human error;
- Manual canrelease, measurement of cans in up to 12 positions, and measurement data can be saved;
- Optional measurement of the profile of the bead/height/flange
Technical parameters:
| Samples sizes | Body can diameter: 50mm-153mm,
Can height up to 250mm (3-pc finished cans) |
| Dimensions | L700*W450*H950mm |
| Weight | 55KG |
| Power Supply | 220VAC/50Hz |
| Air Supply | 5~8Bar |
