CanNeed-COG-100

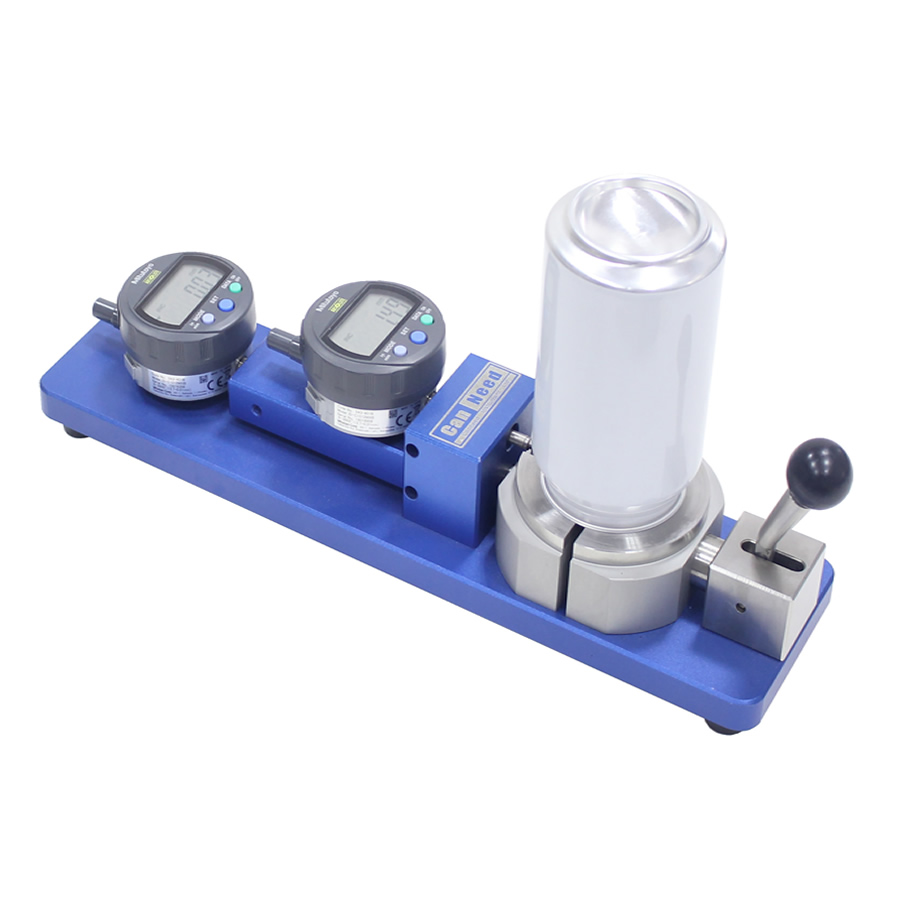

CanNeed-COG-100 Can Internal Size Gauge is a digital gauge for quickly and accurately measuring the internal diameter and the flange width of empty cans.

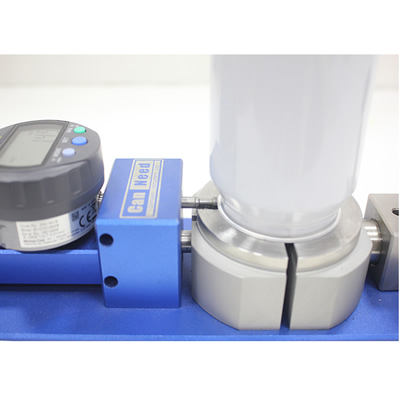

CanNeed-COG-100 combines the advantages of Internal Diameter Gauge and Flange Width Gauge. If purchased the adapter of CanNeed-TRC-200 or CanNeed-TRC-400, it can auto calculate to achieve the actual internal diameter and avoid the measurement deviation caused by the “ellipse effect”. It can automatically position the middle line of the can body. The operators who lack experience can also measure accurately because of its reliable design and constant measuring pressure and angle. Equipped with the Mitutoyo 0.01mm Resolution Digital Indicator.

If purchased the adapter and cable, the gauge can be connected to a computer or SPC system for data collection.

• Resolution : 0.01mm
• Accuracy : 0.02mm
• Flange width measuring range : 0-4mm
• Internal diameter measuring range : Necked-in Can 202 (Other sizes can be customized by order)
• Dimensions : L380 x W90 xH130mm
