CanNeed-CMS-1000

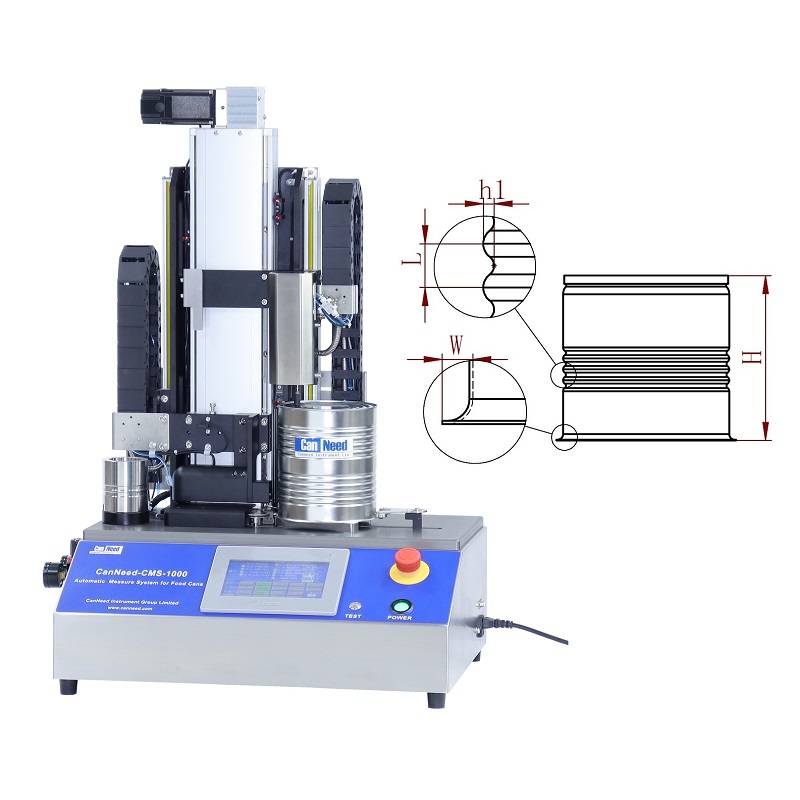

Automatic Measure System for Food Cans
Description
Applications

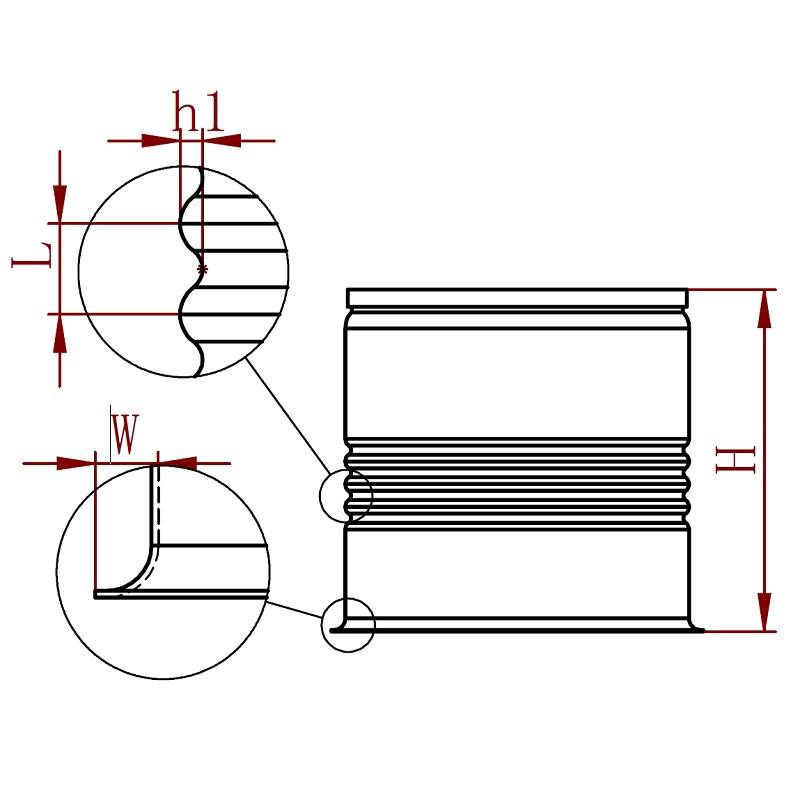

CanNeed-CMS-1000 Automatic Measure System for Food Cans is used to measure Flange Width, Can Height ,the bead depth of the can body and the bead space distance of the can body of 3-pc can.
Advantages
Fully automatic rotation and automatic measurement;
Measurement of cans in up to 36 positions;
Measurement data can be saved;
Relative to manual our mechanical structure is simpler and more reliable, faster, no human error;
Optional software;
Measurement of the profile of the bead/height/flange combination.
Technical Parameter
|
Accuracy: |
±0.02mm |
|
Resolution: |
0.01mm |
|
Samples sizes: |
Can height range：25~250mm (3-pc finished cans) Body can diameter: ∅50~∅153mm |
|
Air Supply |
5~8Bar |
|
Power Supply |
220VAC/50Hz |
|
Dimensions: |
L700*W450*H950mm |
|
Weight: |
55KG |
|
Operating environment |
0~45℃ |
Additional information
| Detection Object | Three-piece can/spray can/coating |
|---|---|
| Testing Occasions | laboratory |
| Test Items | Dimensions |
