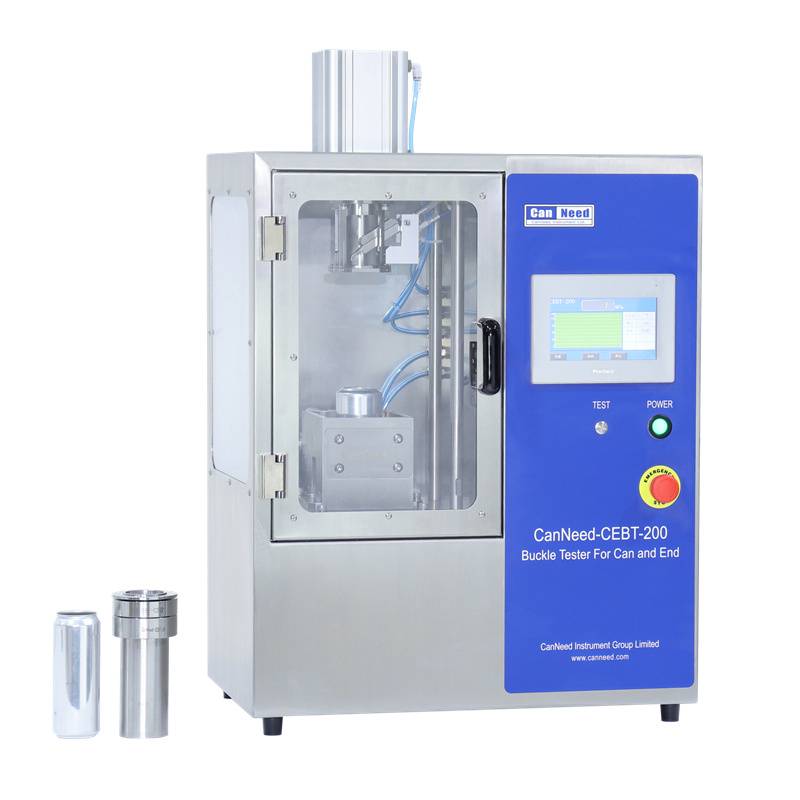

CanNeed-CEBT-200

Canneed-CEBT-200 Buckle Tester for Can and End determines the exact pressure at which the Can and End begins to buckle.  With 4 measuring mode: Buckle Bottom For Can, Missile Test, Peak Test For Free End, Peak Test for Seamed End.

Place the samples onto the Holding clamp, after closing the door, pressure is applied. Fast pressure increase up to the expected value, from there the “pressing speed” can be set within the devic

e. The test will be terminated as soon as the can or end buckles. The maximum pressure value will be shown in the display. Any can and end of different dimensions can be tested; inserts are available that can be exchanged within seconds.

1. Industry Standard
2. RS232C data output, able to transfer the data to SPC system
3. Touch-screen PLC Controlled System
4. Pressing speed is adjustable and the Pressure curve can be set
5. Built-in the “pneumatic pressure-increasing valve”, can change the pressure to double or triple level than the input pressure.
6. High accuracy
7. Test Point for Calibration
8. Multi- safety design
9. Mechanical Overload Protection

• Measure range : 0-900 Kpa（0.9Mpa）
• Resolution : 1 KPa
• Rear Panel : RS232C
• Power supply : 230V/50Hz
• Pneumatic supply : 0.5 Mpa
• Dimensions : 770 x 500 x 1100 (W x D x H )
