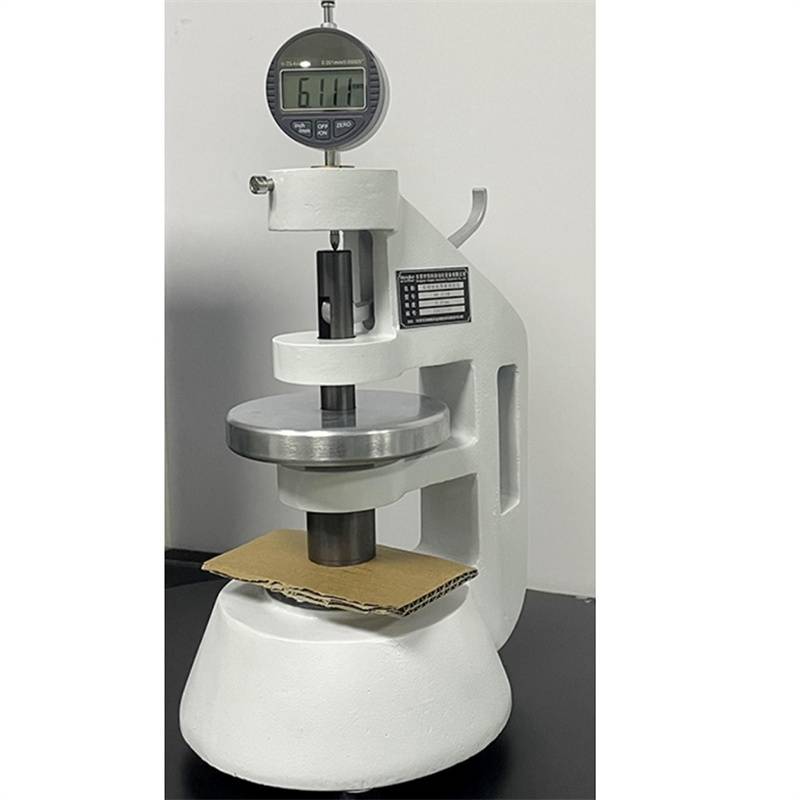

CanNeed-CCTG-20 Corrugated Cardboard Thickness Tester is a mechanical paper and cardboard thickness testing instrument designed and developed by our company according to the national standard GB/T6547, which is mainly applicable to all kinds of corrugated cardboard and is an indispensable measuring instrument for cardboard, carton production, scientific research and commodity inspection and other enterprises and departments.
Test Standards:
The CanNeed-CCTG-20 is designed and manufactured according to the international standards of GB/T 6547、ISO3034.
Advantages:
- Light structure, lever mechanism to achieve lifting and reset, easy to operate and use.
- Precisionmeasuring head.
- Standard meterinterface, easy to replace the meter, convenient daily maintenance.
Technical Parameter:
| Resolution | 0.01mm |
| Indicator error | ±0.05mm |
| Indicating value variability | ≤0.05mm |
| Measuring range | ≤20mm |
| Contact force | (20 ± 0.5) kPa |
| Contact area | (10 ± 0.2) cm2 |
| Parallelism | ≤ 0.035 mm |
| Lowering speed | (2～3)mm/s manual |
| Environmental requirement | For indoor use, RH(relative air humidity)＜85%，Temperature: (20 ± 10)°C |
| Dimensions | (170 × 140 × 225 )mm (LxWxH)(excluding the header) |
| Net Weight | 6.8 kg |
