CanNeed-CAN-5001

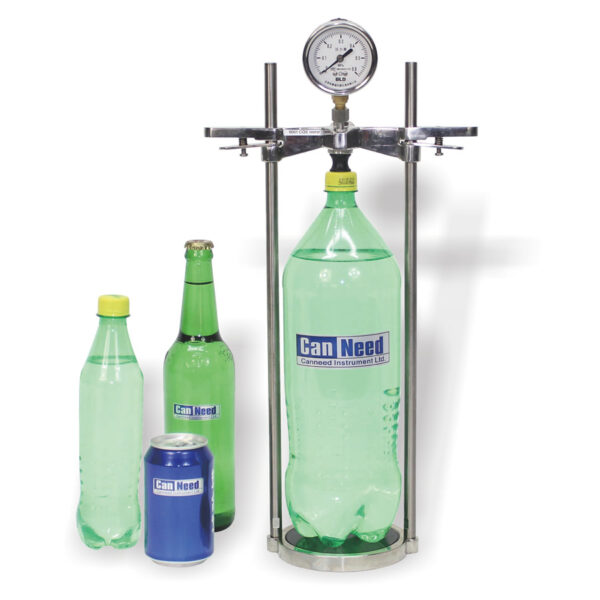

The CanNeed-CAN-5001, CAN-5002 CO2 tester and Pressure Tester are for measuring the CO2 content in carbonated beverages filled in glass and PET bottles or cans. It is designed according to ASBC Theory of American Society of Brewing Chemists, corresponding to “GB/T 4928 – 2001 Brewing Analysis Methods” and “GB/T 10792 – 1995 Carbonated Beverage Analysis Methods”. Therefore, the machine is widely used by Quality and Technical Supervision Bureau and beverage enterprises.

CAN-5001, applied for the samples of max. diameter 102mm and max. height 330mm
CAN-5002, applied for the samples of max. diameter 115mm and max. height 410mm

It is applicable to the bottles or cans with different sizes. After the sample is pierced, the pressure is read on the pressure gauge as soon as the equilibrium pressure is achieved. With a dial thermometer installed in the model CanNeed-CAN-5001-T, the temperature of the liquid is read at the same time. With model CanNeed-CAN-5001,the bottle or can may then be removed from the instrument to measure the temperature of the liquid with a separate thermometer. The CO2 content is determined by means of the CO2 slide rule or temperature/pressure relationship charts.

The machine is simple in structure and convenient in application. Equipped with a pressure manometer of high accuracy and a thermometer of standard, it can ensure the accuracy and reliability of the results.

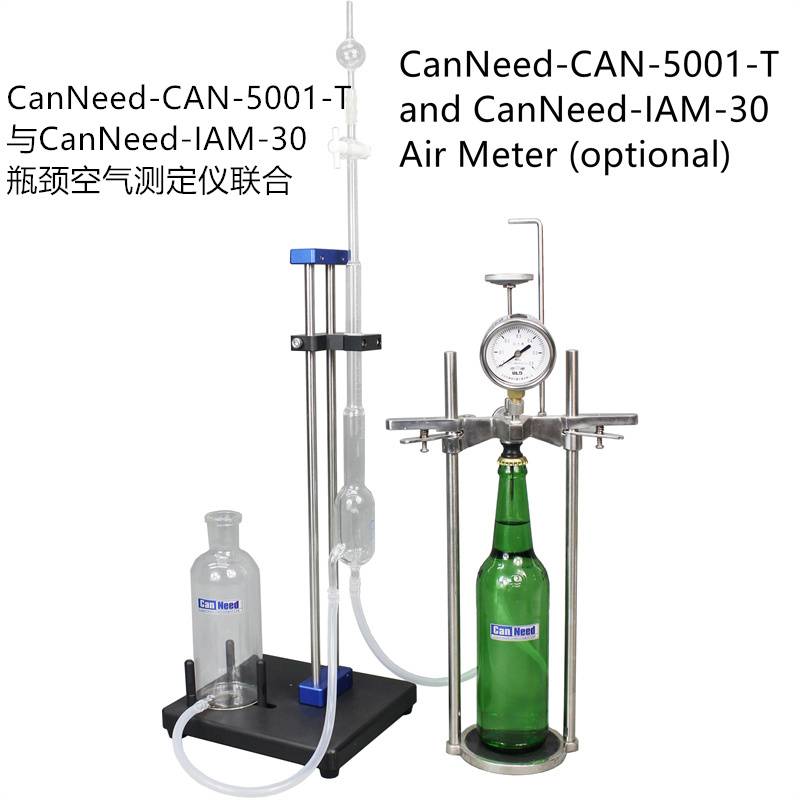

If used together with CanNeed-IAM-30 Air Meter, it can test CO2 content as well as the air content.

• CO2 measuring range: 0 – 4.00%v/v, (0.8%w/w)
• Pressure measuring range:0.6 Mpa, Resolution: 0.01Mpa
• Temperature measuring range: 0-50℃, Resolution: 0.1℃

Sample Capacity:

• Height: CAN-5001, max. 330mm & CAN-5002, max. 410mm
• Bottom Diameter: CAN-5001, max. 102mm & CAN-5002, max. 115mm(Larger sizes made by order)

* IAM-30 Air Meter (please order for option)
Air content Measure range: 0-30ml
Resolution: 0.05ml
