CanNeed-BMS-1000
Automatic Can Measure System for Back End
Description
Applications

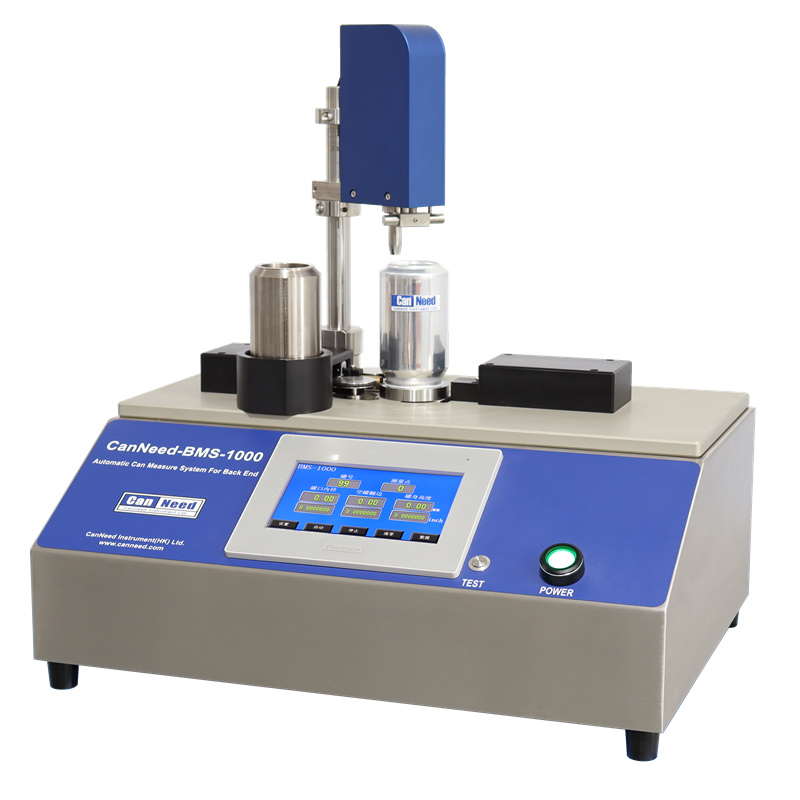

CanNeed-BMS-1000 Automatic Can Measure System for Back End is used to measure Flange Width, Can Height & Internal Diameter of 2-pc can. It’s designed based on practical experience and applied to back end inspection. It can be adjusted rapidly and applicable for various can height.
Advantages
The sample will rotate automatically when measurement starts. The 3 pneumatic controlled sensors will measure the sample automatically. 50 sample points can be set at most in 1 circle. Measure results can be transferred automatically by a RS232 cable. The instrument has been calibrated by standard gauge. And it’s equipped with micrometers imported from Japan and PLC touching screen.
Technical Parameter
● Power supply : 230V/115V
● Air supply : 6 bar
● Data output : RS232C
● Accuracy : ±0.01 mm±1digit
● Measuring unit : mm
● Dimension : 530 × 460 × 260 mm
Pls state diameter and height of can,for example 202,206 necked,330 ml,355 ml,500ml.
● Air supply : 6 bar
● Data output : RS232C
● Accuracy : ±0.01 mm±1digit
● Measuring unit : mm
● Dimension : 530 × 460 × 260 mm
Pls state diameter and height of can,for example 202,206 necked,330 ml,355 ml,500ml.
Additional information
| Detection Object | Canned beer/canned beverages/canned food, Two-piece can/aluminum bottle |
|---|---|
| Test Items | Dimensions |
| Testing Occasions | laboratory |
