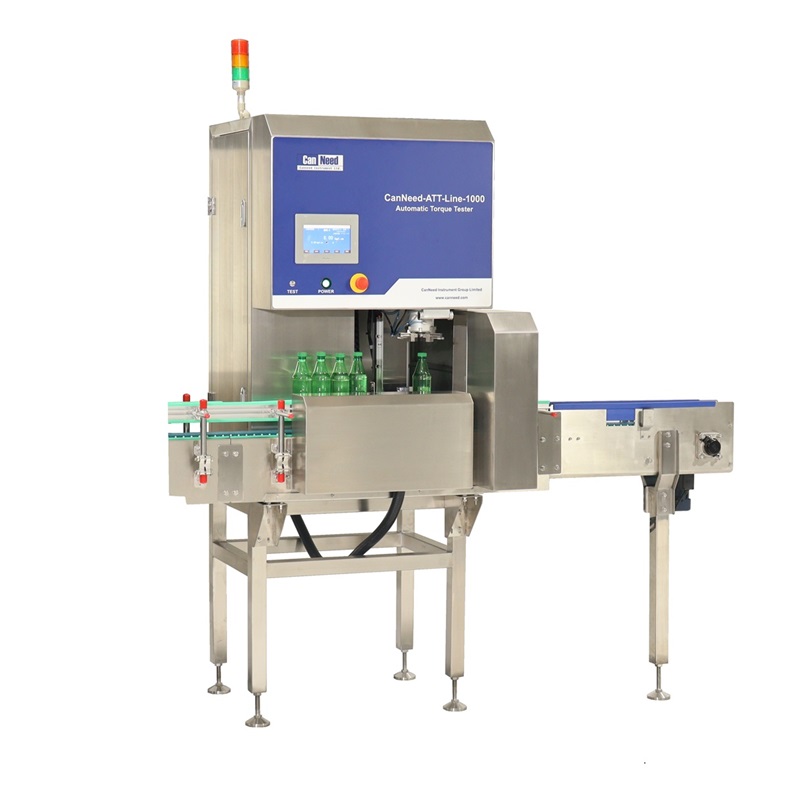

CanNeed-ATT-Line-1000

Bottle packaging is one of the common packaging forms of food, beverage and drugs. The torque value of opening and closing is one of the key controlling parameters on production line or offline. The appropriate torque value has a great influence on the transportation and final consumption of the products. It is one of the key product indicators which needs to be controlled by enterprises.

CanNeed-ATT-Line-1000 Automatic Torque Tester is the ideal instrument to do this test. It can be placed maximum 12 samples, then automatically sampling by conveyor belt. The sample will be measured automatically once arrived at the measurement station and avoid the influence of human factors.

1) To test the bottle cap torque value of opening and closing.
2) Applicable sample size range: All kinds of round bottles which diameter from 55mm-110mm and height ≤360mm.
3) Can be placed maximum 12 samples, then automatically sampling by conveyor belt. The sample will be measured automatically once arrived at the measurement station. Can save 1000 measurements.
4) Single station. Mechanical structure is more simple and reliable, easy to maintain. With faster speed which can test 6 bottles in 1 min.
5) Stainless steel design / IP 64 protection grade.
6) Sampling method: Automatically sampling by conveyor belt.
7) Transfer measurement via RS232 C (standard) interface or via software.
8) For the bottles which diameter smaller than ∅60, can be placed maximum 12 samples. For the NG samples, can be placed 3-6 bottles.
9) Calibration way: Mechanical weight calibration.

• Measring Range 00.00~10N.m (100Kgf.cm)
• Unit Kgf.cm
• Accuracy ±0.5%
• Data Line RS-232 Serial Line, save measurement automatically and transfer to PC
• Power 220VAC/50Hz
• Air Supply 5~8Bar
• Frame Stainless steel frame
• Applicable sample height range 130~360mm
• Applicable bottle cap size range ∅27.5~∅50mm
• Applicable bottle diameter range ￠50-￠125mm
• Working temperature 0~45℃
• Working humidity 0~85%
• Size & Weight L2200*W900*H2100(Including conveyor line), 300Kg
