CanNeed-AS-200d

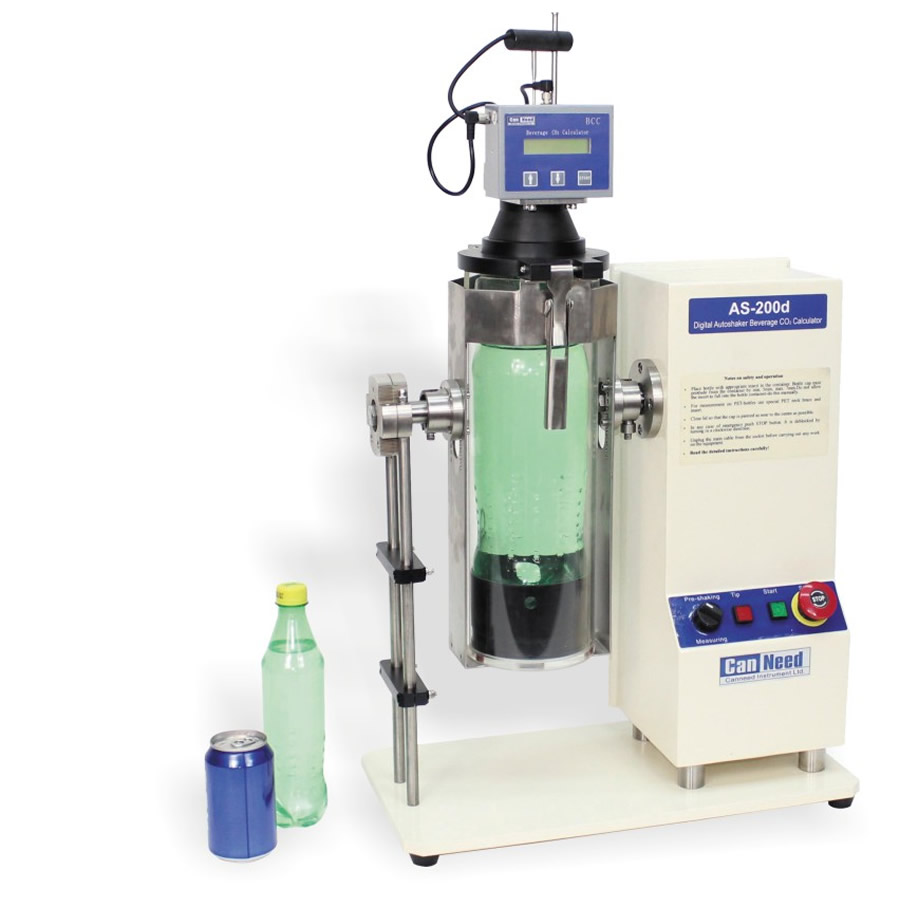

Digital AutoShaker Beverage CO2 Calculator
Description
Applications
The “AS-200d Digital AutoShaker Beverage CO2 Calculator” is a patented instrument which is for calculating the carbon dioxide content in the filled drink in glass/PET bottles and cans. The simple operation which guarantees high reproducibility has led to its becoming a significant element of Quality Assurance in the drinks industry.
The operation involves putting the sample drink in the in the protection drum, piercing the sample, rotation by motor so that phase equilibrium is obtained after the end of the shaking process, and the carbon dioxide content is calculated from the temperature/pressure relationship charts furnished with this instrument. The even rotation overturning the bottle provides optimum release of the dissolved carbon dioxide and is the basis for the excellent reproducibility of the measurement results.
For air determinations the IAM Air Meter can be combined with “AS-200d Digital AutoShaker Beverage CO2 Calculator”.
• Determination of air content in the headspace volume,
• Determination of total air content in the beverage.
Advantages
– Rotate by motor, avoid shaking by hand, guarantees high reproducibility
– With protection drum, more safety
– High accuracy, calculate the CO2 content automatically
– Good repeatability
– Simple operation
– Easy to calibrate
– Applicable to most common glass/PET bottle and cans.
– With protection drum, more safety
– High accuracy, calculate the CO2 content automatically
– Good repeatability
– Simple operation
– Easy to calibrate
– Applicable to most common glass/PET bottle and cans.
Technical Parameter
- CO2 Measuring range: 2.50 – 9.99 g/L (0.25-1.00 gew.%, or 1.25-5.00 % V/V）
- Temperature Measuring range: -10 – +60 ℃
- Press Measuring range: -1 – +6 bar
- CO2 Resolution: ±0.10 g/L
- Temperature Resolution: ±0.2℃
- Press Resolution: ±0.1 bar
- Sample capacity:
- Diameter: 120 mm max. (Bigger by order)
- Height: 360mm max.
- Power supply: 230V/50Hz
- Dimensions: 500 x 400 x 700 mm(W x D x H)
- Net Weight: 20 kg
Additional information
| Detection Object | Canned beer/canned beverages/canned food, Glass bottles/Bottled beer/Wine/Whiskey, PET bottled beverages/PET bottles/preforms/plastic caps |
|---|---|
| Test Items | carbon dioxide |
| Testing Occasions | laboratory |
