CanNeed-ALT-100

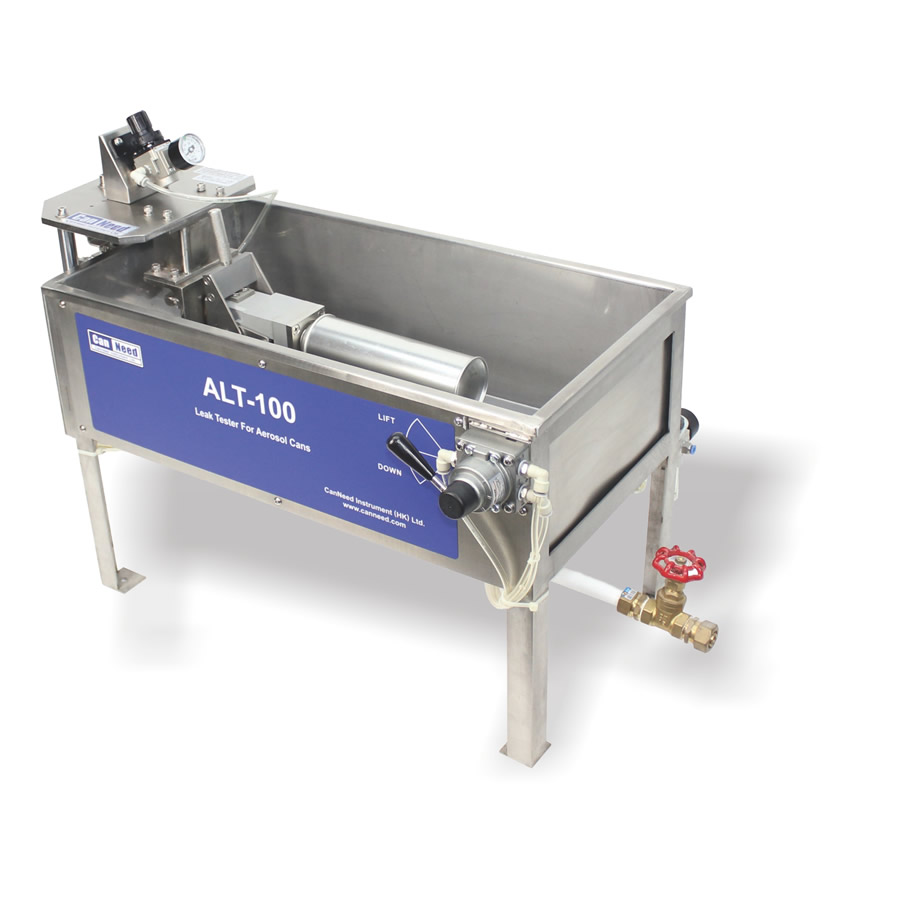

CanNeed-ALT-100 Leak Tester for Aerosol can is used for testing the leakage of Aerosol cans in a water bath. The can is freely suspended and submerged into the water. At the same time it is subjected to pressure and leaks are revealed by air bubbles. Test pressure 8 – 10 bar. The test procedure is performed semi-automatically. The tester is suitable for all aerosol can diameters. The maximum can height is 300 mm.

1. Cans are freely suspended in the water, no extra clamping force
2. Simple clamping device, takes only 1 second to clamp or take off the cans
3. Clamping independent from can diameter
4. Pneumatic simply controlled by the handle to make the cans dip in or lift out of the water
5. End and side seams visible
6. Able to rotate the cans when pressurizing

● Air source pressure : 1.0 MPa
● Max. testing pressure : 1.0 MPa
● Graduation : 0.05 MPa
● Sample : Aerosol Cans
● Dimensions : L590*W420*H480mm
