Description

Applications

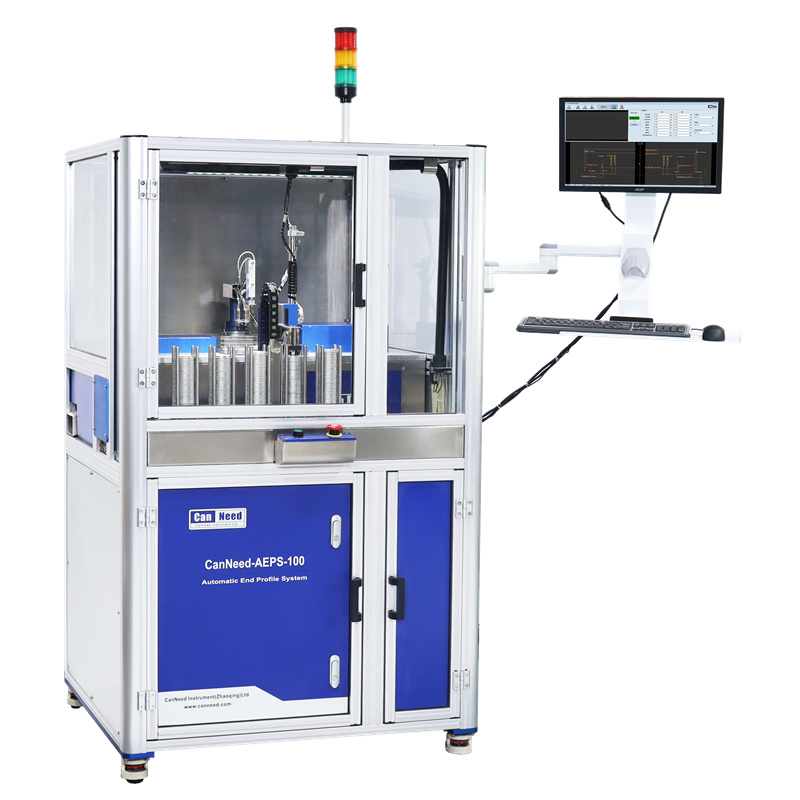

CanNeed-AEPS-100 Automatic End Profile System is used to measure the end dimensions. It is with excellent performance by adopting precise optics measuring technology, measuring the end dimensions precisely.
The inaccuracy of end dimensions usually cause to such double seam defects as fault sealing, bearing cover and false sealing and so on. It is hard to measure the profile dimensions of ends without CanNeed-AEPS-100.
CanNeed-AEPS-100 takes the place of destruction measuring methods. The destruction measuring methods are not only inaccurate and time-consuming, but also get different results because of different operators.
Adopting precise optics measuring technology, CanNeed-AEPS-100 can measure all important parameters of ends.



Advantages

1) Define the end curl parameters!
2) Quick measurement!
3) High accuracy!
4) Non-contact and non-destructive measurement!
5) Non-destructive end curl width measurement!
6) Able to measure some parameters which were hard to gain before, e.g., end curl width and end curl radius.
7) Provide report

Technical Parameter

  • Resolution: 0.01mm or better
  • Dia range: END 200- END 209
  • Max countersink: 6mm

Additional information

Detection Object

End/crown cap/tab cap/screw cap/claw opening cap

Test Items

Dimensions

Testing Occasions

Online/packaging line
