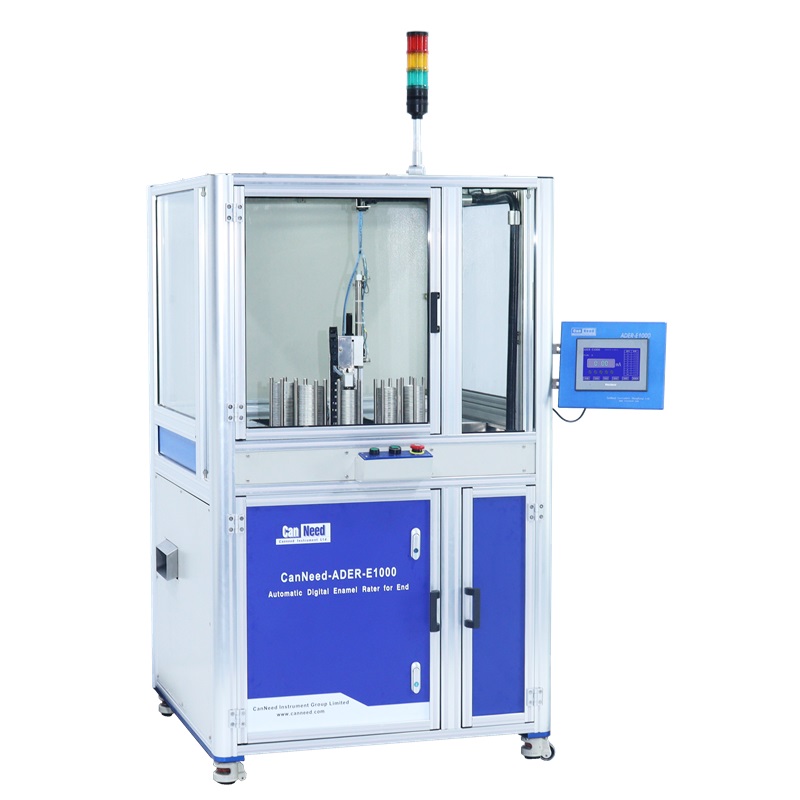

CanNeed-ADER-E1000

Automatic Digital Enamel Rater for Ends

Description

Applications

CanNeed-ADER-E1000 is used to test the coverage of the enamel coating inside ends.(enamel coating compactness, mA)

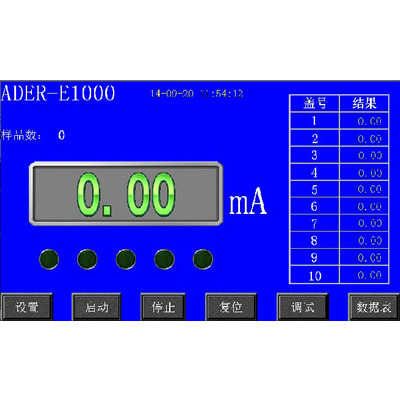

ADER-E1000 automatically place the end into measuring station, then get the current value (mA)of the end after 4 seconds, and also display Max current value and average current value at the same time. If any failure in test caused by poor contact, there will be a reminder and warning. Data can be output to PC via RS 232 C interface.
ADER-E1000 can detect the exposed metal quicker with optimized electric design to make test quicker, more reliable and accurate.



Advantages

  1. Suitable for various end types and sizes.
  2. Automatically sampling
  3. Automatically test height of the elctrolyte.
  4. Automatically add electrolyte.
  5. Automatic sampling, testing of unattended operation, saving both time and labour.
  6. Automatic detection, alarm when exceed the specific range
  7. Automatically save data and transfer to SPC, with curve displayed
  8. User-friendly interface with automatic sampler
  9. “Reverse voltage” function can reverse the polarity of voltage by one key, convenient to test
  10. Multiple safety configuration & overload protection

Technical Parameter

● Measuring voltage: 6.3V,
● Measuring range: 0-300mA
● Resolution: 0.01mA
● Accuracy: +/- 2% of full scale
● Rear Panel: RS232
● Max Quantity: 400
● Dimension: L3158*W1000*H1900mm

Additional information

Detection Object

End/crown cap/tab cap/screw cap/claw opening cap

Test Items

Paint film/paint/coating

Testing Occasions

Online/packaging line
