Description
Purpose:

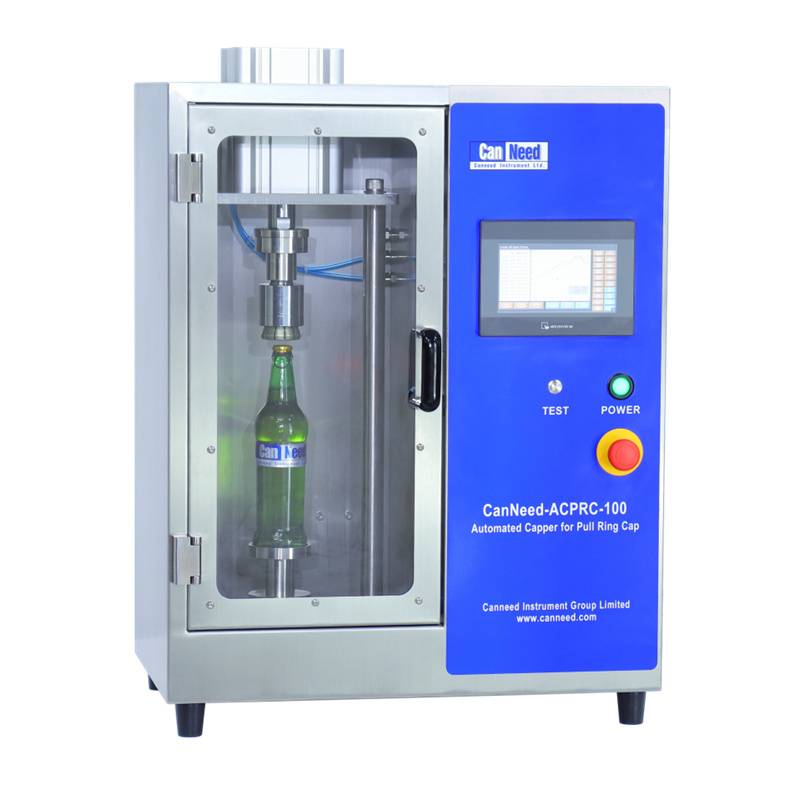

CanNeed-ACPRC-100 Automated Capper for Pull Ring Cap is a highly efficient automated device specifically designed for sealing glass bottles and pull-off caps. It is mainly used in the beer industry and cap factories for sealing tests, PU tests, and other experimental sealing applications. The device adopts advanced mechanical structures and intelligent control systems to achieve precise cap compression, ensuring zero leakage and meeting the requirements of experimental testing. It is a core piece of equipment for enhancing production efficiency and product quality.
Benefits:
- Automatic and efficient capping: Adopta PLC intelligent control system with precise capping pressure settings, enabling one-button operation to complete the process.
- Pressure adaptive control: Equipped with high-precision pressure sensors that adjust capping force in real time to ensure perfect alignment between the bottle and their matching caps of various specifications.
- Visual debugging: The touchscreen interface provides pressure display and parameter customization functions, easy forprocess verification and rapid iteration.
- Stainless steel frame, electrical station is separated from pressurizing stationdesign to ensure safe and reliable operation.
Technical parameters:
| Compression range | 1000N～5000N |
| Accuracy | ±0.5%FS |
| Resolution | 1N |
| Sealing speed | About 20S/each |
| Measure range | Sample diameter 60～100mm, inner diameter of bottle neck 27mm, sample height 100～300mm |
| Power supply | 220VAC/50Hz |
| Air supply | 4-6bar Dry compressed air |
| Operating temperature | 0℃～40℃ |
