CanNeed-ACH-100
Aerosol Curl Height Gauge
Description
Applications
CaNneed-ACH-100 Aerosol Curl Height Gauge is used for measuring the contact height of the curl 1” aperture of aerosol cans. ACH-100 is the Industry Standard.
Advantages

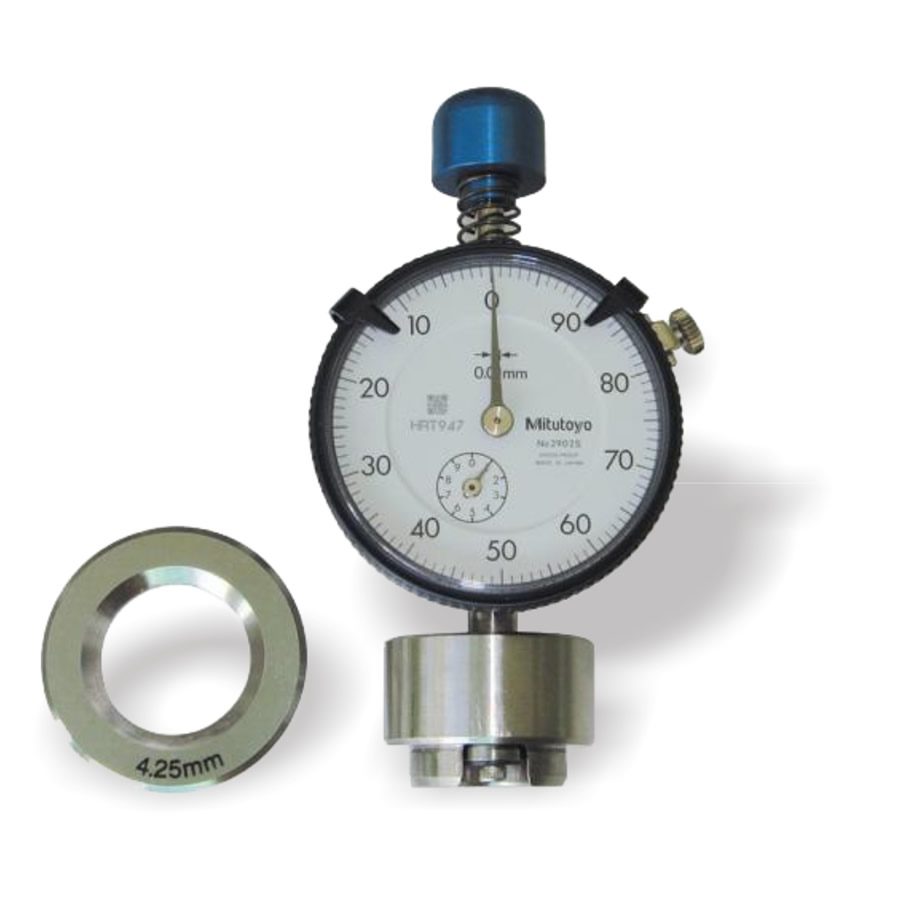

● The gauge is first calibrated by setting the calibration ring on the gauge. In this case the dial has to indicate the value of 4.25 mm.
● The measurement on the can is then inserting the gauge up to the shank into the can and then slowly releasing the button to check the reading.
● The measurement on the can is then inserting the gauge up to the shank into the can and then slowly releasing the button to check the reading.
Technical Parameter
● Measure range : 0 -10mm
● Resolution : 0.01mm
● Dimension : L60*W60*H125mm
● Resolution : 0.01mm
● Dimension : L60*W60*H125mm
Additional information
| Detection Object | Three-piece can/spray can/coating |
|---|---|
| Test Items | Dimensions |
| Testing Occasions | laboratory |
