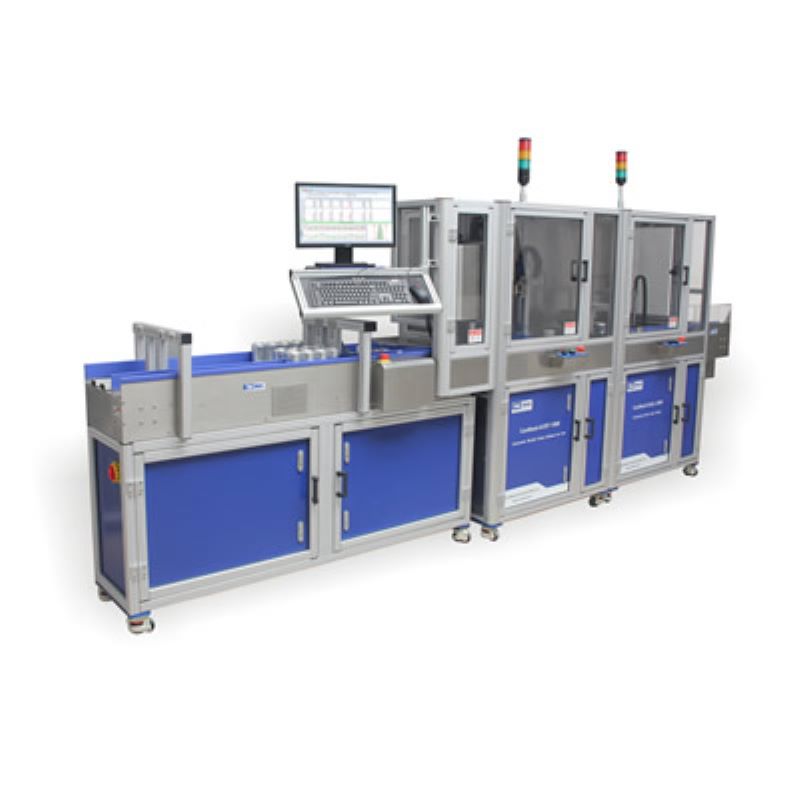

CanNeed-ACBT+AAXL-2000

CanNeed-AAXL-2000 is a full automatic can axial load measure system with unattended operation. It can measure the axial load of the 2-piece can. It is a standard instrument for can-making industry which can realize the constant, efficient and automatic inspection for cans.
CanNeed-ACBT-1000 is a full automatic buckle tester for can bottom with unattended operation.It determines the exact pressure at which the can bottom begins to buckle respectively the dome reverses with dome growth function.

● Automatic unattended on-line measurement
● Auto measurement in all process saving time and cost of HR, avoiding personal error
● Two stations, can measure two samples with different can mouth inner diameter at one time without changing any component
● Multi-channel sampling device, can measure various cans at one time
● Database management software for easy data query and statistics
● User defined report format, suitable style and format for enterprise

● Measurable 2-P Can Dia: 202, 204, 211;  volume: 250ml, 330ml, 500ml
● Power：220V/50Hz
● Air pressure: ＞ 4bar
● Appearance: Aluminum structure
● Dimensions: 4300mm X 800mm X 1800mm (L x W x H)
