Home / Products List / CanNeed-AFMS-2000 Automatic Front End Measure System

CanNeed-AFMS-2000
Automatic Front End Measure System

Testing occasions:Online/packaging line
Detection object:Two-piece can/aluminum bottle
Test items:Dimensions

Applications

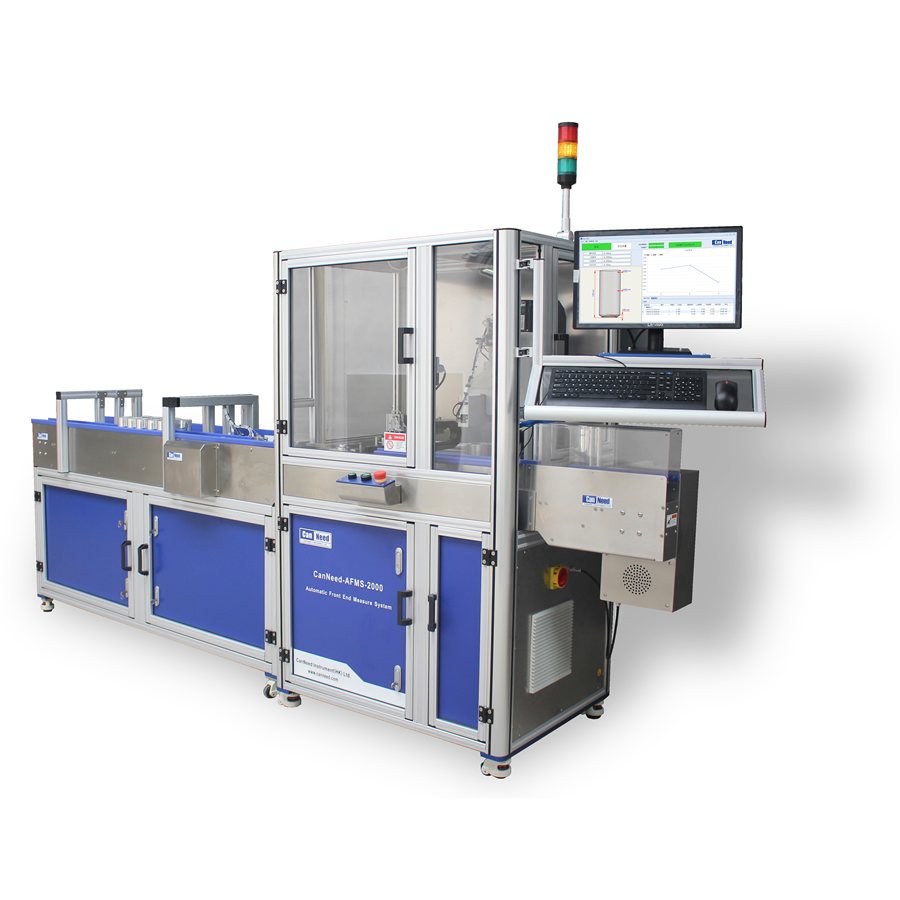

CanNeed-AFMS-2000 is a full automatic front end measure system with unattended operation. It can measure the wall thickness of upper and middle parts of the can, bottom depth and height of the can. It is a standard instrument for can-making industry which can realize the constant, efficient and automatic inspection for cans.

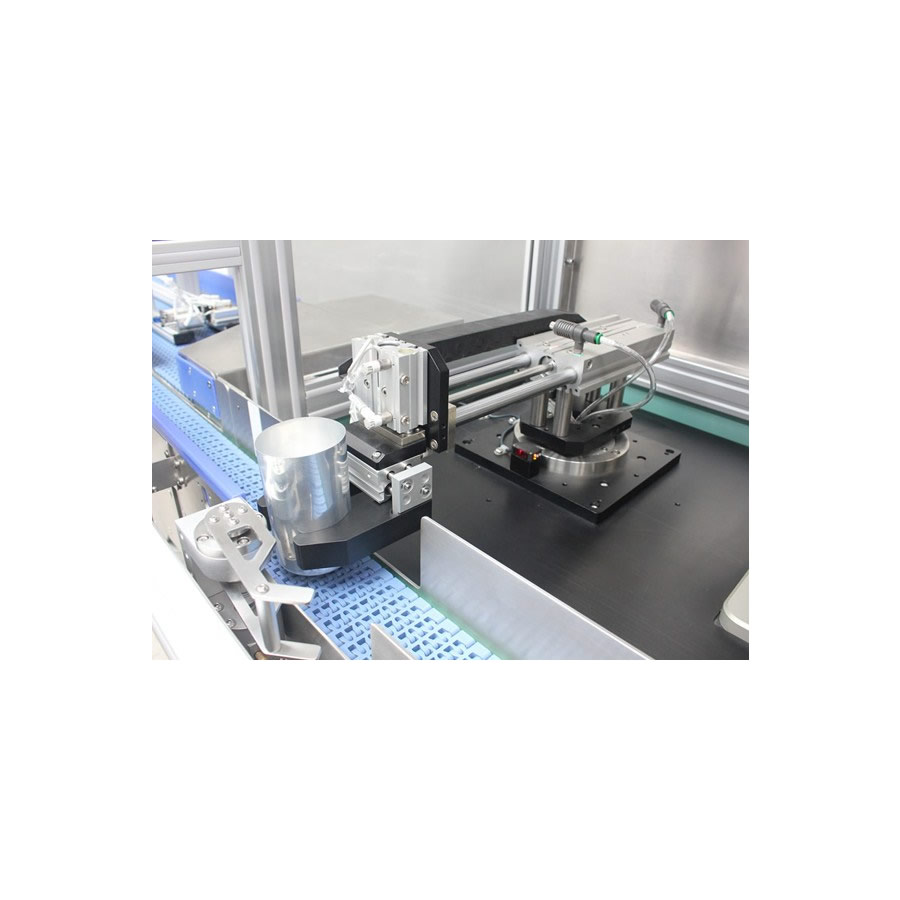

AFMS-2000 is equipped with auto sampling device which conveys the cans to the test area automatically. Swinging mechanical hand pushes the can to the test station then three-jaw centering mechanism locates the can quickly. Swinging device rotates the can to a defined angle to get various testing point. Test result is saved in database and is sent to SPC system automatically.

Advantages

● Quick measurement: upper and middle can wall thickness, Bottom Depth, Can Height
● Auto measurement in all process saving time and cost of HR, avoiding operative error
● Multi-channel sampling device, can measure various cans at one time;
● Adopt visual system to identify mode number of can bottom;
● Easy to change clamp for different types of can. Can measure cans with different diameter and height;
● User can set up more than 50 measuring points at most;
● Fast calibration function available;
● Adopt world-class advanced and precise sensor with outstanding accuracy and repeatability;
● Effective, quick and accurate measurement, improving inspection efficiency;
● Secure, durable, easy operation and maintenance;
● Assemble with very hard alloy measuring head which is a durable;
● Assemble with world-class components;
● Assemble with HD camera for convenient after sale service via remote connection;
● Test result can be sent to SPC system;

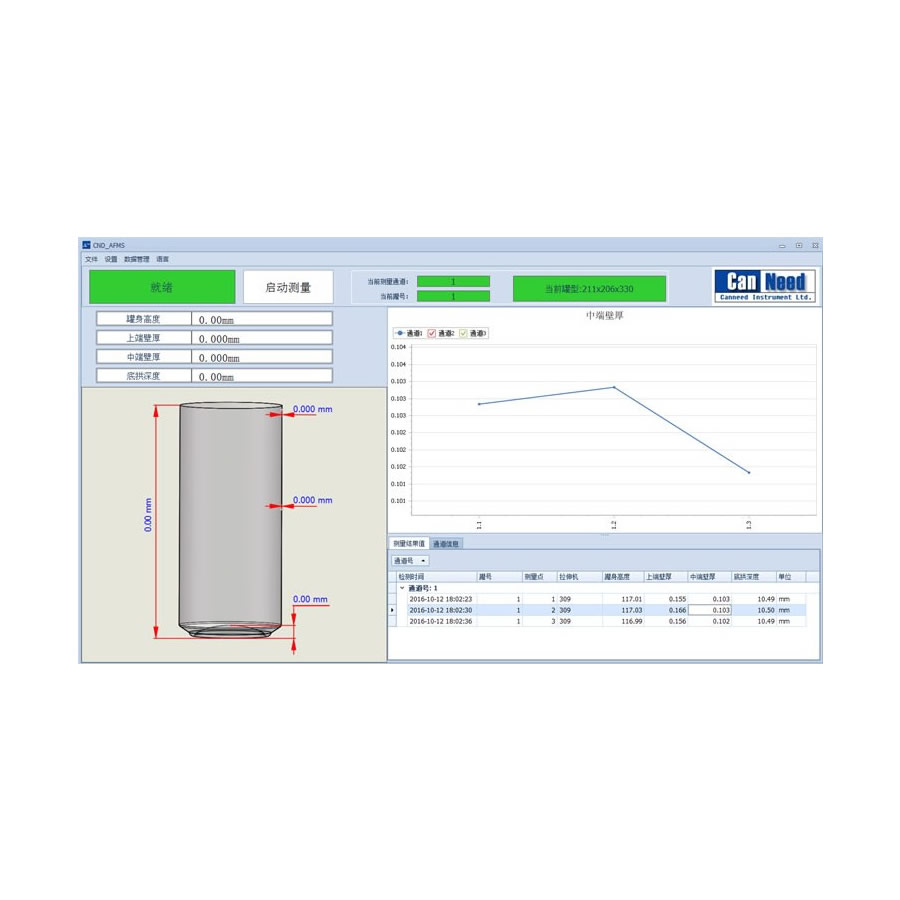

● Database management software for easy data query and statistics;
● Can review single measure result after test for various cans, Auto calculate the average, maximum and minimum;
● Data can be saved to Excel form;
● Various statistics reports;
● User defined report format, suitable for style and format of enterprise

Technical Parameter

1) Wall thickness,  resolution: 0.001mm
Bottom depth,   resolution: 0.01mm
Can height,     resolution: 0.01mm
2) Measurable 2-P Can Dia:   202, 204, 211;  volume: 250ml, 330ml, 500ml
3) Power: 220V/50Hz
4) Air pressure: over 4bar
5) Appearance: Aluminum structure
6) Dimension: L3158*W1000*H1900mm
