Product Classification : PET Bottle and Preform
Total page:1 Current page:1 Total records:26 First | Previous | Next | Last
Goto page

PCT-100 PET Bottle and Preform Cutter
The CanNeed ¡°PCT-100 PET Bottle and Preform Cutter¡± is used to cut the bottle neck or preform neck
for further sealing integrity analysis.

GPG-100 General Profile Gauge
Measures PET bottles, glass bottles, cans, ends, rolls and chucks

CND-SST-300 Secure Seal Tester(3 Stations)
The ¡°CND-SST-300 Secure Seal Tester ¡°is used to test seal integrity on the glass or plastic   containers and cans. The CanNeed-SST-300 has been designed to address the special needs of sealing cans and bottles that use aluminum roll-on, twist crowns, or plastic caps. The CanNeed-SST-300 operates with compressed air, nitrogen, or carbon dioxide. By detecting gas leakage, rather than liquid, the Secure Seal Tester gives more sensitive, accurate readings.

DSST-100 Digital Secure Seal Tester
The ¡°Canneed DSST-100 Digital Secure Seal Tester ¡°is used to test seal integrity on the glass or plastic   containers and cans. The DSST-100 has been designed to address the special needs of sealing cans and bottles that use aluminum roll-on, twist crowns, or plastic caps. The DSST-100 operates with compressed air, nitrogen, or carbon dioxide. By detecting gas leakage, rather than liquid, the Secure Seal Tester gives more sensitive, accurate readings.

CND-TT-200 Torque Tester

Applications: Food-industry / Cosmetic/ Pharmaceutical / Chemical / Metrology


SPECIFICATIONS:
1) Utilization by Electroluminescent tactile screen
2) Programming by pull-down menu
3) Measures in screwing and unscrewing.( opening and closing )
4) Units available : Kgf.cm / Inch.lbs / daN.cm / N.cm / N.m
5) Measuring range  A : from 00.00 to 99.99Kgf.cm / 9.999 N.m
6) and  0.050 to 3.999 Kgf.cm (in " accuracy " mode )
7) and 0.001 to 2.999 on request
......


ATT-100 Automatic Torque Tester
AUTOMATED PART: this machine has for rule to realize controls of torques in laboratory or near the bottling line making total abstraction of the human factor during the measure. The operator has for rule only to put down the sample on the machine and press the start button.

PEBT-4000 PET Bottle Pressure Tester (Burst Tester)

Canneed ¡°PEBT-4000 PET Bottle Pressure Tester (Burst Tester)¡± is an advance testing equipment specialized for testing the PET bottles. It has been designed in conformity to the three (3) international commonly used testing methods, users can select the testing mode according to their requirement. PEBT-4000 is able to test the pressure capabilities that under a preset pressure or the burst test.

By the means of water replenishing pressurization, the pressurizing process was linearized, and to increase until reaching the preset point or burst point.

Users can select the testing mode through the touch-screen. Fill the sample, close the protection door, then press start. When the testing starts, the PEBT-4000 will clamp the sample and run accord with the settings automatically. The touch-screen will display the real-time pressure value and record down the max. pressure (passing test) and burst pressure (destructive test).


CND-SST-3 Secure Seal Tester

The CanNeed ¡°CND-SST-3 Secure Seal Tester¡± is used to test the seal integrity on the glass or plastic   containers and cans. The CND-SST-3 has been designed to address the special needs of sealing cans and bottles that use aluminium roll-on, twist crowns, or plastic caps. The CND-SST-3 operates with compressed air, nitrogen, or carbon dioxide. By detecting gas leakage, rather than liquid, the Secure Seal Tester gives more sensitive and accurate readings.


CND-SST-3 is made from anodized aluminium, stainless steel, and plastic materials. The tester's rugged construction withstands production line abuse, yet is accurate enough for laboratory use.


MBT-300 Hall Effect Thickness Gauge (Magnetic Bottle Thickness Gauge)

The Canneed ¡°MBT-300 Hall Effect Thickness Gauge (Magnetic Bottle Thickness Gauge¡± is a refined portable bottle thickness gauge. It can measure the thickness of nonmagnetic material, such as plastic, glass, synthetics, aluminum and titanium, etc. The measurement accuracy is undistorted by the samples¡¯ shapes.

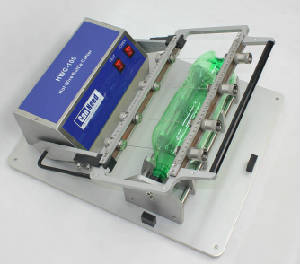

HWC-100 Hot Wire Bottle Cutter
Prepares bottles for section weight analysis.

PET bottle samples of 200ml to 2,000ml are cut in 4 predetemined portions, Each bottle portion are checked to ensure that they comply to the exact weight assignment

PPG-100, PPG-200 Preform Perpendicularity Gauge

The Canneed "PPG-100, PPG-200 Preform Perpendicularity Gauge" is used to test the perpendicularity of PET bottle.It is the standard equipment for PET bottle industry and beverage industry.
Unlike other instruments, PPG-100 and PPG-200 can effectively avoid the measuring errors made by the clamp. Equipped with calibration column, it can ensure absolute accuracy.


TLT-200 Top Load Tester

TLT-200 Top Load Tester for PET Bottle is used for top load strength, top load deformation test as well as bottle flat and lateral pressure test. The testing results provide important evidence for quality controlling and improving. It is easy and convenient to operate and maintain TLT-100.


STT-100 / STT-100S Digital Torque Tester
The cap closing and opening force of the bottled products is an important controls parameter in the manufacturing technique. Whether the torque value is appropriate has great effect to the delivery and consumers. If the torque value is too small, leakage may occur, if the torque is too large, the consumers may hardly open it.

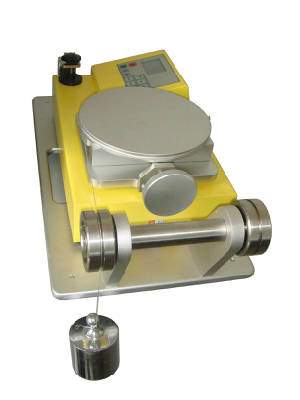

STT-CAL Torque Tester Calibration Tool

The CanNeed ¡°STT-CAL Torque Tester Calibration Tool¡± is use for calibrating the torque testers.

Adopted the precision weight, can achieve the accurate torque value.


PETG-100d PET Bottle Embryo Thickness Gauge (Digital)

The ¡°PETG-100d PET Bottle Embryo Thickness Gauge (Digital)¡± is used to measure the embryo thickness of PET Bottle.

Easy-handling design and invariablenes measure pressure let operators get the accurate measure result easily.


PETG-200 PET Bottle Embryo Thickness Gauge (Digital)
"PETG-200 PET Bottle Embryo Thickness Gauge" is used to measure the embryo thickness of PET Bottle.

Easy-handling design and invariablenes measure pressure let operator get the accurate measure result easily.

CPG-200 Canners Pressure Gauge
The ¡°CPG-200 Canners Pressure Gauge¡± is for measuring the inner pressure of the beverage or other containers.

Pierce into the sample with the piercing head of CPG-200, the seal component will form a temporary sealed condition, then the inner pressure of the sample will display on the pressure gauge.

CPG-200 consisting of: Piercing holder; pressure gauge; Piercing head and seal component.

PEPT-100 PET Bottle Perpendicularity Tester
The CanNeed ¡°PET Bottle Perpendicularity Tester ¡± is used to measure the perpendicularity of PET Bottle. The Tester is the industrial standard in PET bottle manufacturing and beverage industry. It consist of rotation clamp, digital Mitutoyo indicator and calibration column.

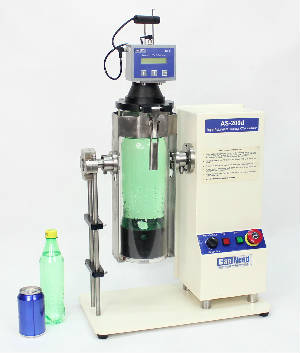

AS-200d Digital AutoShaker Beverage CO2 Calculator
The ¡°AS-200d Digital AutoShaker Beverage CO2 Calculator¡± is a patented instrument which is for calculating the carbon dioxide content in the filled drink in glass/PET bottles and cans. The simple operation which guarantees high reproducibility has led to its becoming a significant element of Quality Assurance in the drinks industry.

Attributes:
- Rotate by motor, avoid shaking by hand, guarantees high reproducibility
- With protection drum, more safety
- High accuracy, calculate the CO2 content automatically
- Good repeatability
- Simple operation
- Easy to calibrate
- Applicable to most common glass/PET bottle and cans.

AS-100 AutoShaker Beverage CO2 Calculator

The ¡°AS-100 AutoShaker Beverage CO2 Calculator¡± is a patented instrument which is for calculating the carbon dioxide content in the filled beverage in glass/PET bottles and cans. The simple operation which guarantees high reproducibility has led to its becoming a significant element of Quality Assurance in the drinks industry.

Attributes:
- Rotate by motor, avoid shaking by hand, guarantees high reproducibility
- With protection drum, more safety
- Measurement just need 3 minutes
- Simple operation
- Applicable to most common glass bottle PET bottle and cans.


CAN-7001 CO2 Tester and Pressure Tester

The ¡°CAN-7001 CO2 tester and Pressure Tester ¡°is used to measure the CO2 content in carbonated beverages filled in glass and PET bottles and cans.

Once the bottle or can is placed in the tester, the handle is pulled forward and the sample is pierced consecutively.

The pressure is read on the pressure gauge, as soon as the equilibrium pressure is achieved.

With a dial thermometer install with model CAN-7001-T, the temperature of the liquid is read at the same time.

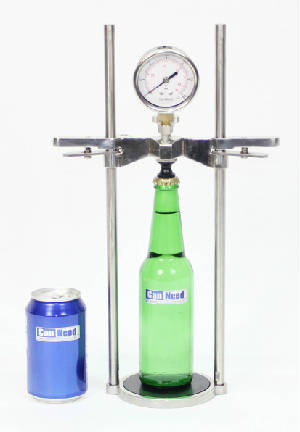

CAN-5001 CO2 Tester and Pressure Tester

The ¡°CAN-5001 & CAN-5001-T CO2 tester and Pressure Tester ¡°is for measuring the CO2 content in carbonated beverages filled in glass and PET bottles or cans. It is applicable to the bottles or cans with different sizes. The pressure is read on the pressure gauge as soon as the equilibrium pressure is achieved.


DHG-300 Digital Can Height Gauge
The ¡°DHG-300 Digital Can Height Gauge¡± which is equipped with a measuriin plaftorm can be used to measure the height of Bottle and Can. The gauges can be connected to a computer or SPC system via the adapter and cable.

BCG-100 Base Clearance Gauge
Measures base clearance (Dome Height at the bottom) of PET bottles and displays results on an integrated digital indicator. Resolution:0.01mm

GNG-100 ¡®Go-no-Go¡¯ Gauge
Quality control gauges for checking the threaded tops of glass and plastic containers. Checks the threads, outside diameter, spacing, etc.

Comb. Finish Gauge 28mm-PCO-1816 PET
Comb. Finish Gauge 28mm Pet/28-969-1716
Comb. Finish Gauge 38mm Glss/38-1663
Comb. Finish Gauge 38mm Pet/38-1690
Comb. Finish Gauge 28mm Glass/28-1650RE
Comb. Finish Gauge 28mm-PCO-1810 PET
Comb. Finish Gauge 28BPF

FHS-100 Fill Height Syringe
Used to adjust water level in a bottle to a pre-determined fill height.
For checking content of bottle using the fill height Syringe accurately and quickly.
