Product Classification : Glass Bottle
Total page:1 Current page:1 Total records:12 First | Previous | Next | Last
Goto page

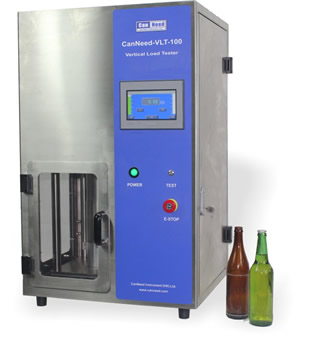

VLT-100 Vertical Load Tester
The CanNeed Vertical Load Tester (VLT) measures the vertical load strength of glass containers, simulating capping and stacking loads. Helps to reduce broken containers during capping and stacking.

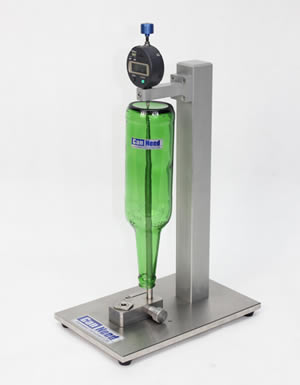

BBTG-200 Bottle Bottom Thickness Gauge (digital)
BBTG-200 Bottle Bottom Thickness Gauge (digital) is for measuring the bottom thickness of bottles, it is applicable for beer bottles or other similar bottles.
Adopted the Mitutoyo digital indicator, resolution up to 0.01mm.

GPG-100 General Profile Gauge
Key Benefits:
(1) Tests on the bottle size - to prevent errors during producing
(2) Radius (R2.4; R4; R0.5; R2.4)
(3) Arc transition line angle (45 ¡ã)
(4) Interval between Bottle cap positioning line and the bottle neck (3.85mm)
(5) Suture burr height of Bottle ring
(6) Diameter of the bottle mouth
(7) Monitoring mold wear, determine when to replace.
(8) Eradicate bad profile design

BPT-4 Ramp Pressure Tester (automatic)
BPT-4 Ramp Pressure Tester is an advanced testing instrument for pressure testing glass containers,also can be used to test the burst value.
High efficiency.PLC controlled,LCD touch screen display.Automatic clamping system,servo control pressure process.Display real-time data,test and save data automatically.
Two test ways: :linear pressurization and pressure maintaining.Users can choose testing way as to actual demands.

BPT-4000 Ramp Pressure Tester (automatic 2 stations)
BPT-4000 Ramp Pressure Tester is an advanced testing instrument for pressure testing glass containers,also can be used to test the burst value.
Two positions,high efficiency.PLC controlled,LCD touch screen display.Automatic clamping system,servo control pressure process.Display real-time data,test and save data automatically.
Two test ways: :linear pressurization and pressure maintaining.Users can choose testing way as to actual demands.

GIT-100 Glass Bottle Impact Tester
The CanNeed ¡°GIT-100 Glass Bottle Impact Tester¡± is industry standard to test the impact resistance of various glass bottles. There are two ruler readings: impact energy and angle of pendulum bar.

MBT-300 Hall Effect Thickness Gauge (Magnetic Bottle Thickness Gauge)

The Canneed ¡°MBT-300 Hall Effect Thickness Gauge (Magnetic Bottle Thickness Gauge¡± is a refined portable bottle thickness gauge. It can measure the thickness of nonmagnetic material, such as plastic, glass, synthetics, aluminum and titanium, etc. The measurement accuracy is undistorted by the samples¡¯ shapes.


DHG-300 Digital Can Height Gauge
The ¡°DHG-300 Digital Can Height Gauge¡± which is equipped with a measuriin plaftorm can be used to measure the height of Bottle and Can. The gauges can be connected to a computer or SPC system via the adapter and cable.

VAT-300 Perpendicularity Tester for Bottle (Auto)
The ¡°VAT-300 Perpendicularity Tester for Bottle (Auto)¡± is for measuring the perpendicularity deviation of glass bottles. With the data processor, the VAT-300 is able to collect the measuring data from the Mitutoyo digital indicator and show the results automatically.

BWTG-200 Bottle Wall Thickness Gauge (Digital)
"BWTG-200 Bottle Wall Thickness Gauge" is for measuring the bottle wall thickness of glass bottles, applicable for the beer bottles.

BWTG-200 is using the Mitutoyo digital indicator.

GNG-100 ¡®Go-no-Go¡¯ Gauge
Quality control gauges for checking the threaded tops of glass and plastic containers. Checks the threads, outside diameter, spacing, etc.

Comb. Finish Gauge 28mm-PCO-1816 PET
Comb. Finish Gauge 28mm Pet/28-969-1716
Comb. Finish Gauge 38mm Glss/38-1663
Comb. Finish Gauge 38mm Pet/38-1690
Comb. Finish Gauge 28mm Glass/28-1650RE
Comb. Finish Gauge 28mm-PCO-1810 PET
Comb. Finish Gauge 28BPF

FHS-100 Fill Height Syringe
Used to adjust water level in a bottle to a pre-determined fill height.
For checking content of bottle using the fill height Syringe accurately and quickly.
