Product Classification : Can Making----3-piece Can Testing
Total page:2 Current page:1 Total records:34 First | Previous | Next | Last
Goto page

Seam-X-On-line X-Ray Automatic Seam Scanner(Non-destructive)

     The CanNeed ¡°Seam-X-On-Line X-Ray Automatic Seam Scanner¡± adopts non-destructive measurement method to measure the seam quality, suitable for measuring the aluminum cans, steel cans , aluminum-iron composite cans and etc. It¡¯s applicable for online in producing department. It¡¯s a non-destructive, cost saving, accurate measurement and automatic equipment which can be installed on the production line to improve the sampling frequency.


Advantages:
01)Non-destructive measurement, avoid wasting samples
02)Non-destructive measurement, avoid environmental pollution and save handling charges
03)High sampling frequency, reduce the isolation inferior
04)High sampling frequency, cost saving
05)Can track the chucks corresponding to the unqualified products
06)360-degree fully scan measurement
07)Can be suitable for various types of cans
08)Higher accuracy
09)Avoid manual measurement error
10)Durable
11)Accord with the worldwide safety standards


Seam-X-Line X-Ray Automatic Seam Scanner (Non-destructive)
The CanNeed Seam-X-Lab is suitable for laboratory.
Can open or close the door automatically£¬put in or take out the sample cans by manual operation.
The CanNeed Seam-X-Lab Automatic Seam Scanner adopts non-destructive measurement method to measure the seam quality, suitable for measuring the aluminum cans, steel cans , aluminum-iron composite cans and etc .It¡¯s a non-destructive, cost saving, accurate measurement and automatic equipment which can be installed on the production line to improve the sampling frequency.

SeamSight®-B Full Automatic Seam System

The CanNeed Seam Sight ® -B system can automatically collect the data from STG-200-d Seam Thickness Gauge and CSG-d Countersink Gauge. The actual seam thickness and countersink can be generated reports together with other data. To optimize the measurement process.


CSS 2000 Seam Saw
The CanNeed "CSS-2000 Seam saw" is a special seam circular saw with double cut for double seam inspections. The CSS 2000 was specially designed for 2- and 3-piece cans. Also aerosol-cans may be sawed with this saw. The nitrated blades achieve together with the speed of approx. 1.000 r/min. a very plain cut surface. The seam image on Caneed series Automatic Seam Computer (Video Seam Monitors), and automatic seam measuring systems gets thereby very clear and improves measurement speed and reliability.

STR-100 Seam Stripper
The CanNeed automatic "STR-100 Seam Stripper" is a sensible, affordable, teardown method to prepare the double seam teardown analysis. One fast, safe teardown operation without damaging or distorting the cover hook. Reduce teardown time for more frequent inspections. Tooling quick change in few seconds. Models are available for most common can sizes of beverage, food, and aerosol cans. When ordering, the end diameter and can height must be specified so that the appropriate change parts are included. Efficient cut and strip both aluminium and steel cans in a single motion. 10 seconds per can. Eliminates the repetitious actions by hand.

SCG-200 Seamer clearance Gauge
The CanNeed SCG-200 Seamer clearance Gauge, a quick and accurate way to set up seamers.To measure the roll height off the chuck and the lateral distance between the roll and chuck.

RPG-100 Roll profile Gauge

The CanNeed RPG-100 is able to scan profiles of seaming Rolls and Chucks (or other tooling - including carbide and ceramic tools) easily and quickly. The system can be used for acceptance testing for new seaming rolls or chucks, for quality assurance purposes and for stress analysis. Monitor tooling wear to replace rolls and chucks only when they need to be replaced


CAN-1050D Can Closing Force Gauges

The CanNeed CAN-1050D Can Closing Force Gauge is for measuring the force of seaming head of the seaming machine. By using CAN-1050D, producers can avoid product defects caused by over plating: sharp edge, seam breakage, body deformation, body hook overlength, over large countersink and so on. In the meantime, producers can also avoid product defects caused by too small pallet lift force: slippery cans, too short hook and so on.








CAN-10774 Planer and Shaper Pin Height Gauge
The Pin Height Gauge is commonly used in the initial setup of the seamer to ensure double seaming performance and air removal.

CSM-208, CSM-207 Can Seam Micrometers (Fine tuning)
The CanNeed CSM series Can Seam Micrometers are use for measuring the seam thickness and length. The fine tuning function helps to avoid the deviation caused by over rotation.

CSM-208 is applicable to measure the seam thickness and length of flat bottom straight wall cans.
CSM-207 is applicable to measure the seam thickness and length of aerosol cans and necked-in cans.

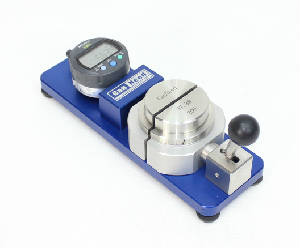

IDG-100 Can Internal Diameter Gauge
The CanNeed ¡°IDG-100 Internal Diameter of Can¡± is used to measure the internal diameter of small cans, such as 200, 202, 206, 209.

With the Mitutoyo 0.01mm resolution digital indicator.
If purchased the adapter and cable, the gauge can be connected to a computer or SPC system for data collection.

IDG-100 is for small diameter cans, Cans dia. 52-100 mm (only measure one type can)
IDG-200 is for large diameter cans, Cans dia. :80-260 mm (only measure one type can)
IDG-300 is compatible for two (2) or three (3) sizes of cans.


CSS-300 Seam Saw
The CanNeed CSS-300 Seam saw is a special seam circular saw with double cut for double seam inspections. The CSS 300 has specially designed for the irregular shaped cans, like rectangle cans, oval cans, etc. Also aerosol-cans can also be sawed with the saw. The nitrated blades achieve together with the speed of approx. 1.000 r/min. so that comes a very plain cut surface. The seam image on the Canneed series of Automatic Seam Monitors gets thereby very clear and improves measurement speed and reliability.

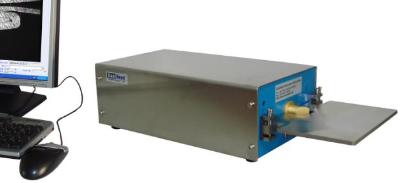

CanNeed SeamSight®-V3 Full Automatic Seam Monitor
The CanNeed Seam Sight® professional seam measuring software will do the line positioning automatically and the measurement to be finished within 1 second! The software also adopted the data base management system, all the measurement data will be restored in the system data base, so that to enhance the software performance and more convenience in data management. The result statistic and result chart has been added in the data base screen for overview and comparison. Meanwhile, the measurement screen has been optimized for a vivid result display.

CSG-200 Countersink Gauge
The CanNeed "CSG-200 Countersink Gauge (digital)" is a Digital gauges for measuring Countersink depth parameters (the depth of beader of can).

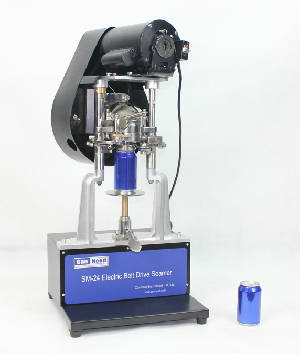

SM-24 Electric Belt Drive Seamer
The Canneed ¡°SM- 24 Electric Belt Drive Seamer¡± (Desktop model) enables the users to do more lab tests. Such as, adjusting some technique, enhancing the products quality, test the empty cans and free ends, to insert a temperature logger into a can before running a temperature monitoring.
It is much more convenient for those lab tests, fast, easy and high efficiency.

CTG-4000 Wet Film and Coating Thickness
Application:
1. Test wet film and coating thickness,both save time and improve quality
2. Test both single layer and multilayer coating
3. Adopt non-contact optical technique,suitable for research,quality control and on-line control.
4. Can be used in Solar energe,optical coating,foods package,metal package field.Improve the quality by appearance,adhesion,resistant to corrosion and fricton,as well as scratch.

CTG-310 Coating Thickness Gauge

The Canneed's ¡°CTG-310 Coating Thickness Gauge¡± provides a computer enhanced method of rapidly assessing lacquer film weight of both internal and external coatings on beverage and food cans, and also tinplate.
Use standard coating plate (sample with known weight, g/m2) calibration equipment,to test different types of coatings.Test result and coating type number will display on the screen,and data output to PC with RS232.


STG-200-D Seam Thickness Gauge (Digital)

The CanNeed ¡°STG-200-D Seam thickness gauge (Digital)¡± is used to measure the Seam thickness of cans. With measure angle compensation. The center measure point can be adjusted. Cans can be auto-positioned in the center easily during measuring. With the Mitutoyo 0.01mm Resolution Digital Indicator.


DER-400 Digital Enamel Rater

The CanNeed DER-400 Digital Enamel Rater is the industry standard. The new CanNeed Enamel Rater DER-400 instrument test the coverage of the enamel coating inside food and beverage cans, aerosol-cans and also different kinds of ends. It displays an index of the amount of metal exposed by incomplete enamel coverage on a clear, easily read digital LED.





CND-TRK-300 Oven Temperature Logger

The CanNeed CND-TRK-300 Oven Temperature Trackeris a professional oven temperature curve inspection system for the coating industry, it is including the data logger, heat insulation case, software (Chinese / English) and thermocouples."CND-TRK-300 Oven Temperature Tracker" is use to pass through the oven with the solidifying products, and record down the real temperature during the process.


CLT-100 Leak Tester for Can
The Canneed "CLT-100 Leak Tester for can" is used for checking the leakage of 3-piece cans in a water bath. It can test one can in each test.
The test procedure is performed semi-automatically and the CLT-100 is suitable for different sizes of round 3-piece cans.

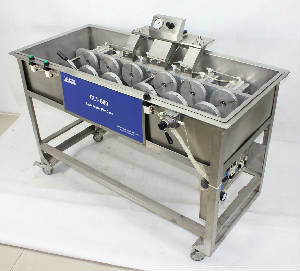

CLT-600 Leak Tester for Can

The canneed CLT-600 Leak Tester for can is used for checking the permeability of 3-piece cans in a water bath.
The can is fixed to magnet disc plate and submerged into the water.
At the same time it is subjected to pressure and leaks are revealed by air bubbles. End and side seams visible.
A special parallel clamping system enables to measure different diameters and heights with one device.
The clamping pressure and the test pressure may be set independantly.The operator determines the period of time the cans are under water. If he switches the by-pass lever and presses the two button valves, the cans deaerate and are lifted out of the water.
The whole test cycle is automated and is pneumatically controlled by pressure regulator valves.


ZM-370-D, ZM-570-D, ZM-920-D, ZM-1220-D Digital Body Blank Gauge

The Canneed ZM-370-D, ZM-570-D, ZM-920-D, ZM-1220-D Digital Body Blank Gauge
These units are made for the quality control of can body blanks.
1. Precision gauge for measurement of body blanks with the help of a incremental ruler/ fine measuring gauge combination and a digital dial indicator for the angle measurement;
2. Constant measuring force for accurate, repeatable, user-independent results
3. Sequential measurement of blank height, blank width and squareness


ZM-10 Digital Body Blank Gauge

The CanNeed ¡°ZM-10 Digital Body Blank Gauge¡± is made for the quality control of can body blanks. It is a precision gauge for body blank measurement/angle measurement.


WOM 4C Welding Overlap Monitor
The CanNeed ¡°WOM 3A Welding Overlap Monitor¡± is used to measure the length and thickness of side seam welding overlap. It¡¯s equipped with the most advanced optical system and Golden LensTM, which ensured the high image definition.

CDG-100 Curl Diameter Gauge
The CanNeed "CDG-100 Curl Diameter Gauge" is a Digital gauges for measuring Curl Diameter of ends. Equipped with calibration piece. With the Mitutoyo 0.01mm Resolution Digital Indicator.
If purchased the adapter and cable, the gauge can be connected to a computer or SPC system for data collection.

WWT-100 Welding Line Outstretched Tester
The CanNeed ¡°WWT-100 Welding line outstretched tester¡± is used to test the flange point welding integrality of 3-pieces cans.

WWP-100 Welding Seam Ball Press Tester

The Canneed "WWP-100 Welding Seam Ball Press Tester" is used to test the welding seam quality, including the welding seam strength and continuity of 3-piece cans.


BDD-200A Bead Depth Gauge (Digital)

The CanNeed "BDD-200A Bead Depth Gauge" is for measuring the bead depth of the can body, with the special designed end measuring holder, end bead depth can also be measured. The fine designed can holder, which ensures the cans keep still during the measuring, and the results are more accuracy.


BDD-200A Bead Depth Gauge is the advanced model compare to the BDD-200, it is consisting of measuring units, digital indicator and data processor, operators only need to move the measuring needle to pass the beads, then the data processor will auto calculate and display the value of bead depth.


DHG-300 Digital Can Height Gauge

The CanNeed "DHG-300 Digital Can Height Gauge" can be used to measure the height of beverage, food, and aerosol cans. The gauges can be connected to a computer or SPC system via the adapter and cable.



Total page:2 Current page:1 Total records:34 First | Previous | Next | Last
Goto page
"If you can not find the product you need, please contact us or leave a message."
